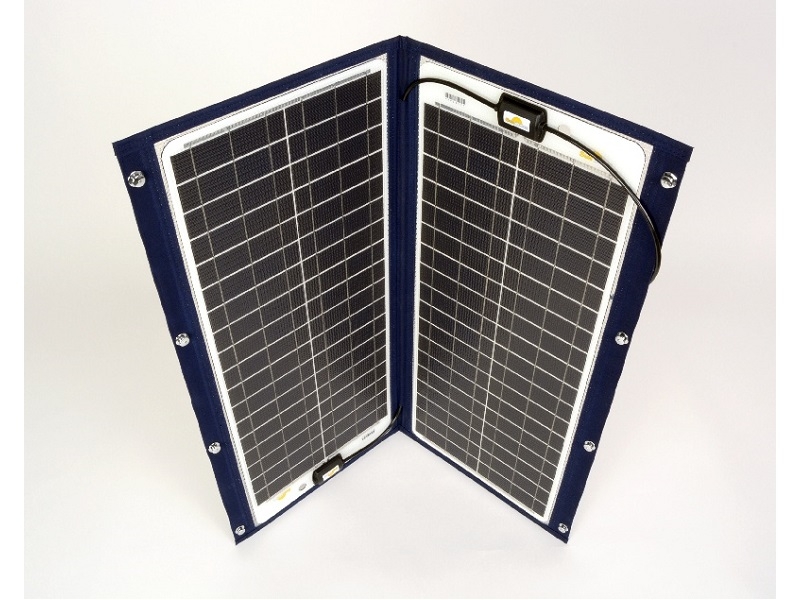

TX-22252 – 120Wp, 24V Foldable Solar Module w/ Textile Frame

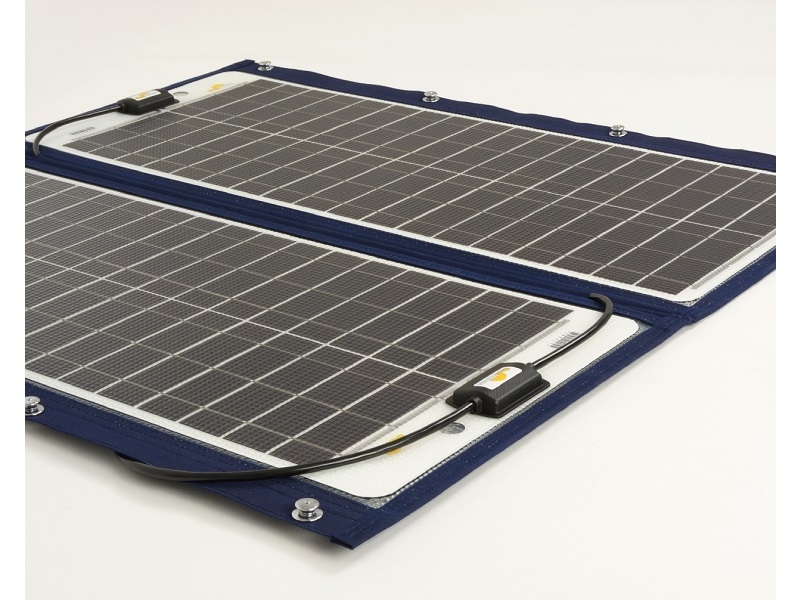

The TX-22252 is a light-weight panel with textile cover made of high-quality tarpaulins. The TX-22252 module have been specially developed for mounting on Bimi or Sprayhood. These areas provide sufficient space for powerful solar modules. Finally enough power for the fridge, tablet, sat nav and autopilot.

Quick release fasteners LOXX tops are used in the binding band. The package also includes a watertight plug-in connection (cable plug and socket), LOXX sockets and a 10m connection cable for a particularly simple and fast assembly.

If the panel is no longer needed, it can be quickly removed - Loosen the coupling on the cable, open the LOXX, fold the panel and store it. Thanks to the compact dimensions there is always a place.

The multi crystalline high-performance solar cells are protected in an EVA laminate and ETFE coatings against weathering. Even in diffused light conditions or even in winter, the modules produce a high charging current.

Assembly

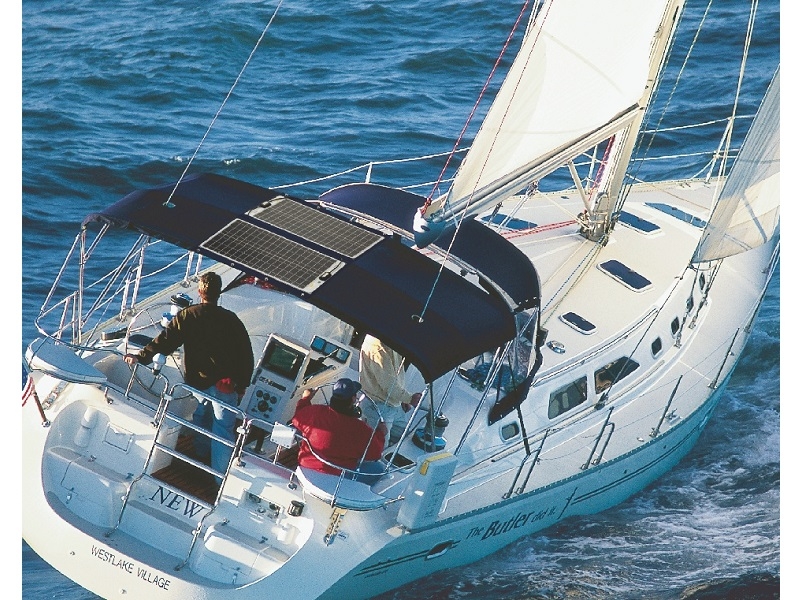

The panels are fastened to the Bimini with the LOXX fasteners. Cut holes for the LOXX elements in the Bimini with the enclosed punch, screw the LOXX into the Bimini with the enclosed sealing washers and clip on the panels. To remove the panels, raise the head of the LOXX element and release it from the lower part.

SPECIFICATIONS

• Pmax: 120.0 Wp
• Imax: 3.10 A
• Umax: 38.71 V
• Uoc: 49.0 V
• Isc: 3.30 A
• Number of Cells: 72
• Cell size: 52.0 x 156.0 mm
• Laminate: ETFE/EVA/ETFE
• Dimensions: 1106.0 x 826.0 mm
• Weight: 5.1 kg
• Voltage: 24V
