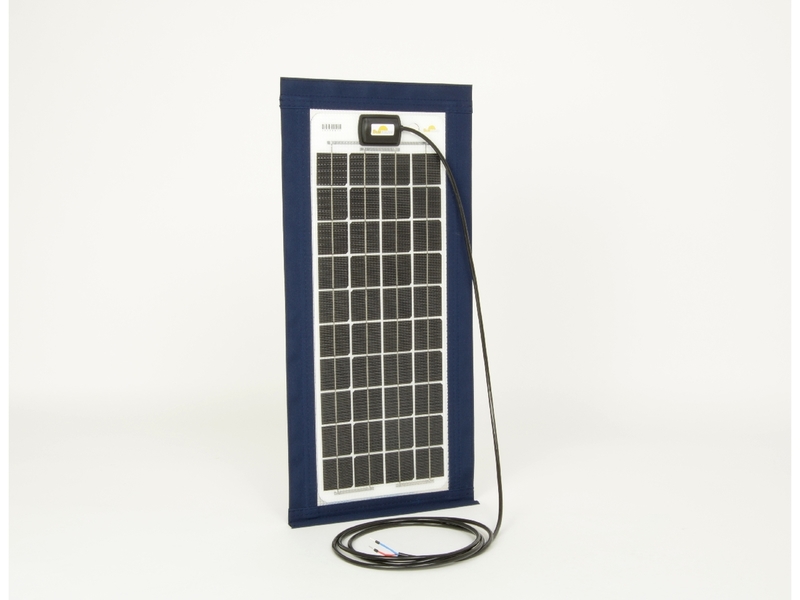

TX-11027 – 20Wp, Foldable Solar Module w/ Textile Frame

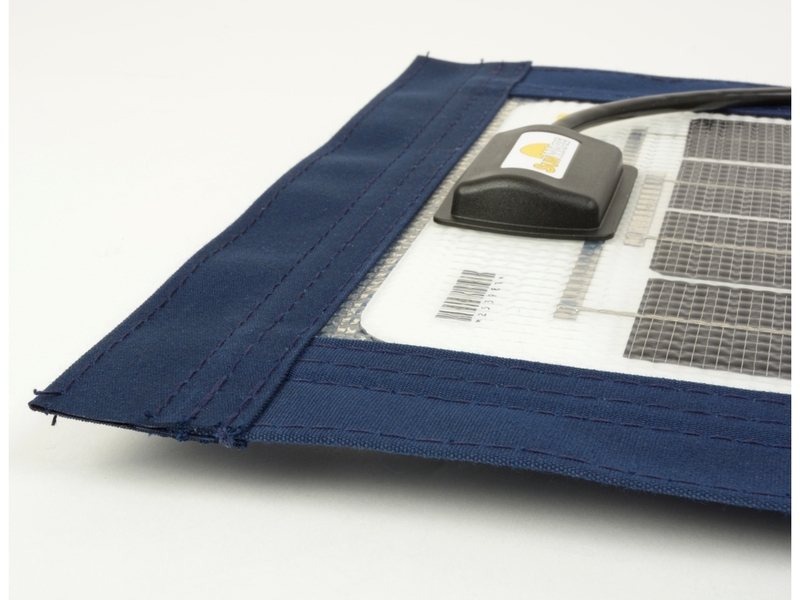

The TX-11027 solar panel is ideal for mobile applications. The small solar module TX-11027 is extremely lightweight and portable. Comes with a textile frame, designed to put on various surfaces on board your boat.

This panel is made of very strong materials and the connections between the cells absorb the vibrations and ensure lasting protection, either when placed or when transported folded.

SPECIFICATIONS

• Pmax: 20.0 Wp
• Imax: 1.01 A
• Umax: 19.80 V
• Uoc: 24.5 V
• Isc: 1.10 A
• Number of Cells: 40
• Cell size: 52.0 x 52.0 mm
• Laminate: ETFE/EVA/ETFE
• Dimensions: 668.0 x 333.0 mm
• Weight: 1.0 kg
• Voltage: 12V

To download the files simply click on the desired files to select and then click the Download button at the bottom .
