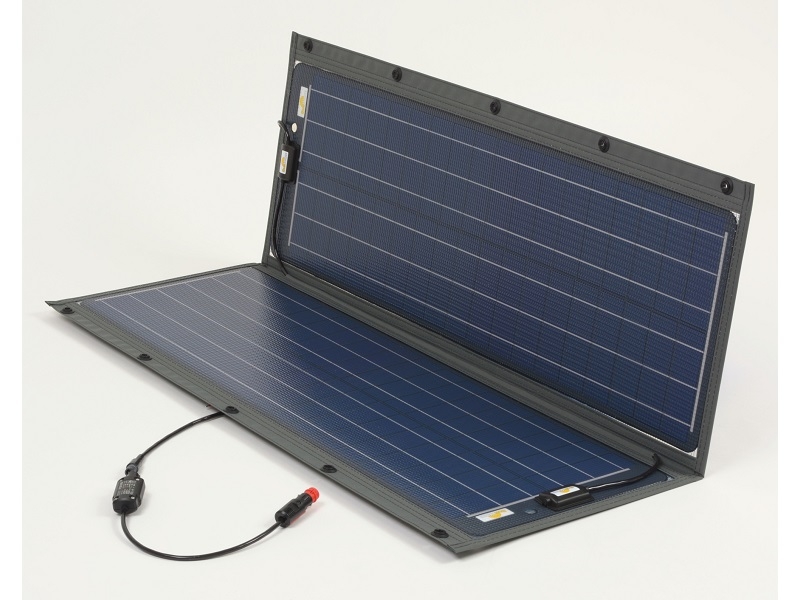

RX-22239 – 90Wp, 24V Plug & Play Solar Panel

RX solar panels - Lay out, plug-in - ready!
The Plug & Play solar panels from SunWare. Install the solar module, insert the charger - ready!

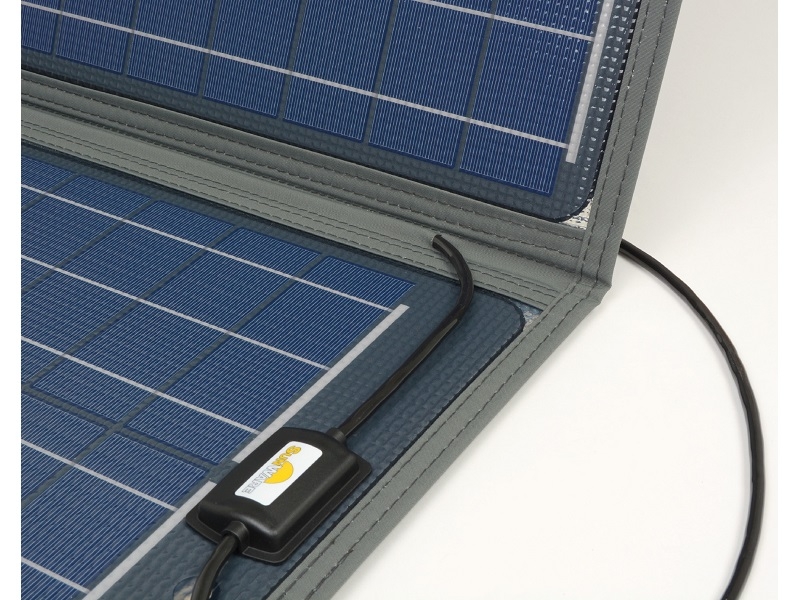

The RX-22239 solar panel can be simply plugged into the 12V socket or the cigarette lighter with the enclosed charger controller FOX-062. Your battery is already recharged.

The multicrystalline high-performance solar cells are protected in an EVA laminate and ETFE coatings against weathering. Even in diffused light conditions or even in winter, the modules produce a high charging current.

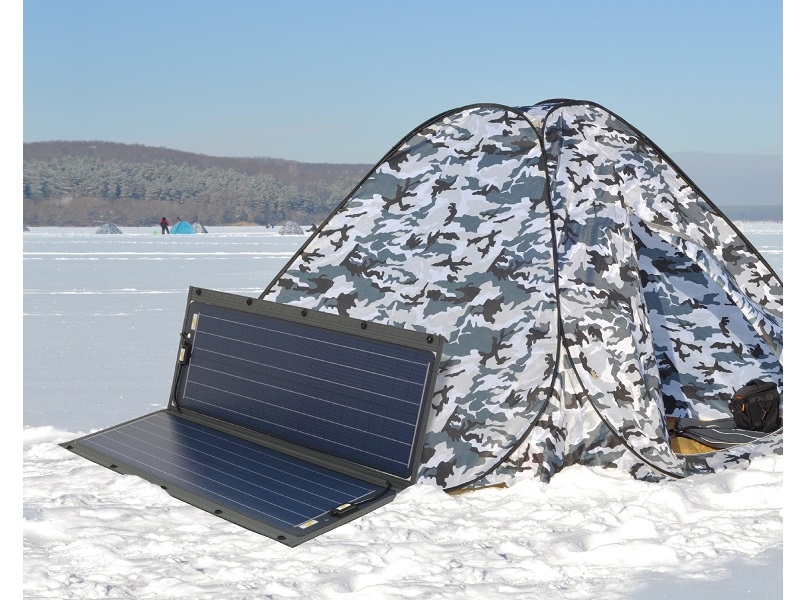

Due to the foldable design, the panel can be easily stowed away or taken away easily when traveling. The cells are supported by the only slightly flexible carrier plate made of aluminum sandwich. This carrier plate protects the cells against breakages.

SPECIFICATIONS

• Pmax: 90.0 Wp
• Imax: 2.30 A
• Umax: 39.13 V
• Uoc: 49.6 V
• Isc: 2.50 A
• Number of Cells: 72
• Cell size: 39.0 x 104.0 mm
• Laminate: ETFE/EVA/ETFE
• Dimensions: 873.0 x 826.0 mm
• Weight: 4.2 kg
• Voltage: 24V

To download the files simply click on the desired files to select and then click the Download button at the bottom .
