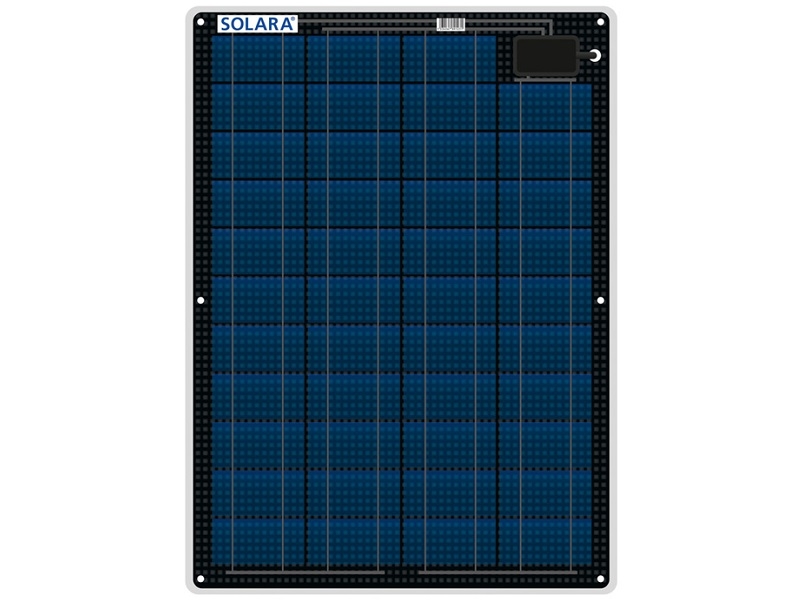

S200M43 - 41Wp, 12V Solar Panel M-Series

APPEARANCE AND DESIGN

• Stability and maximum heat dissipation due to aluminum-sandwich-plate
• Thanks to innovative cell-chaining technique semi-flexible (up 3%) mountable
• Walkable
• Extremely resistant protective Nowoflon film on front and back
• Particularly flat and glued screwed cable outlet with strain relief
• Well known since 20 years
• Already prepared cable gland in the carrier plate

Long lifetime even under extreme conditions

• Extremely high yields through the use of crystalline high performance cells
• Maximum daily yield by additional single cells
• Powerful low-light performance – High yields even under cloudy and partially shaded conditions
• External cell protector with bypass diodes offers protection against cell overheating (Hot-Spots) is included

SPECIFICATIONS

• Daily output in summer: 170 Wh/d
• PMPP: 41 Wp
• ISC: 1.92 A
• UoC: 27.13 V
• UMPP: 22.88
• IMPP: 1.81 A
• Dimensions: 654 x 481 mm
