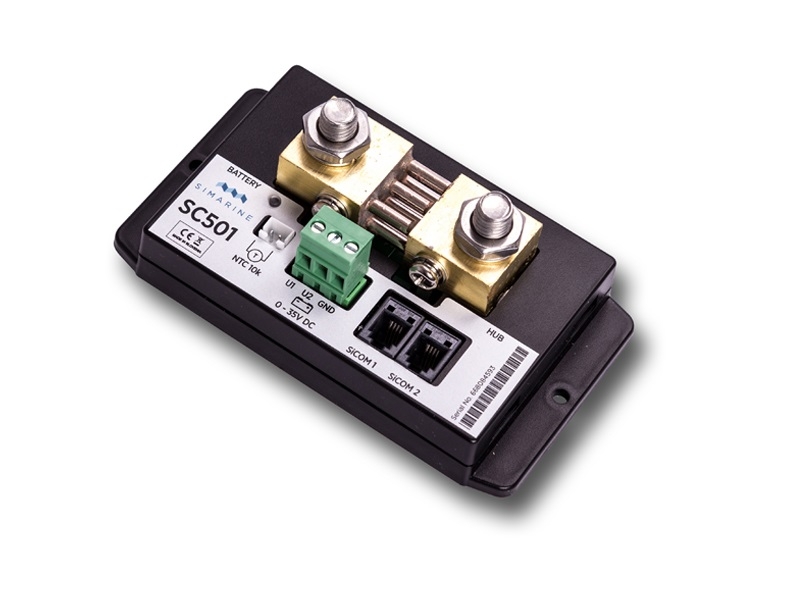

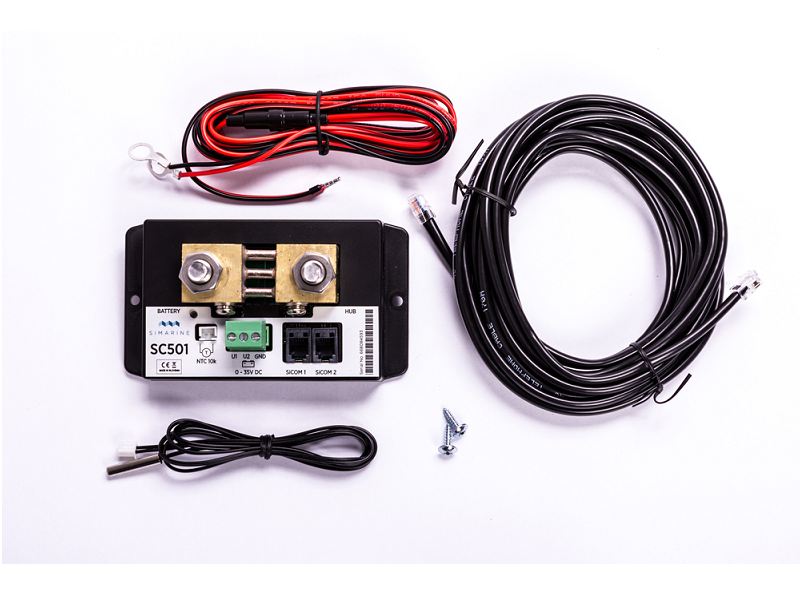

SC501 – 500A Active Digital Shunt

It can be used for monitoring current draw of heavy consumers like inverters, bow and stern thrusters and anchor winches and current generators like shore power chargers and solar panels.

SC501 active shunt precisely monitors battery voltage on 12V, 24V, 48V, 60V and 72V systems, battery temperature and continuous currents up to 500A (600A peak). It’s suitable for maximal power of 3600W at 12V, 7200W at 24V or 14400W at 48v…

SPECIFICATION

GENERAL

• Weight: 0.3 kg
• Dimensions: 10 × 5 × 3 cm

TECHNICAL

• Voltage range: 6 – 35 V
• Temperature range: -20 – +70 °C
• Power consumption at 12V: Operating 0,8 mA
• Current Measuring: Range 0,02 – 600 A | Accuracy ± 0,6 % | Resolution 0,02 A | Sampling rate 100 ms
• Continuous current: 500 A
• Peak current (<1min ): 800 A
• Voltage measuring: Range 0 – 70 V | Accuracy ± 0,2 % | Resolution 1 mV
• Temperature sensor – NTC 5K: Range -15 – +80 °C | Accuracy ( -10 – +60 °C ): 3 %
• Dimensions: 118x40x52 mm
• Connection: M 10 bolts
