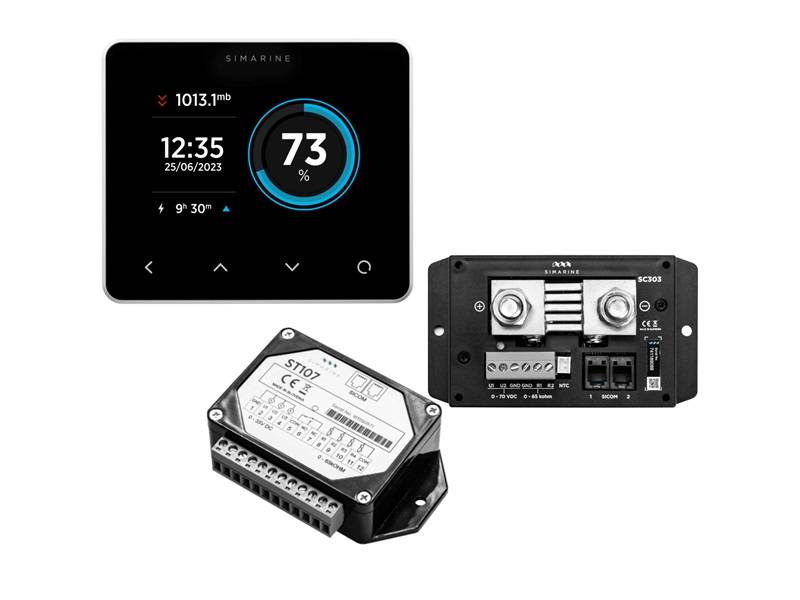

PICO Standard set - Intelligent Battery Monitoring System Package

PICO Standard set is for you if you want to monitor 1 main battery or battery bank, up to 4 starter or auxiliary batteries, and up to 6 tanks or temperatures. It features three main devices.

PICO battery monitor that displays data about batteries, tank levels, temperatures, fridge, solar, it helps you level your campervan, and even includes a barograph.

Voltage, current, or time remaining? PICO has all the answers.

The Pico battery monitor displays all data about your batteries’ voltage, state of charge, remaining ampere hours, time to charge or discharge, and even temperature.

You can monitor up to 6 battery banks.

The Pico system is modular, which means that you need expansion modules in addition to the PICO monitor.

PICO Standard set is for you if you want to monitor 1 main battery or battery bank, up to 4 starter or auxiliary batteries, and up to 6 tanks or temperatures. It features three main devices.

PICO battery monitor that displays data about batteries, tank levels, temperatures, fridge, solar, it helps you level your campervan, and even includes a barograph.

The SC303 shunt, which is included in this set, allows for a continuous current up to 300 amps. It has 2 resistance and 2 voltage inputs, and 1 socket for a temperature sensor.

Additionally, the ST107 tank level and voltage module provides the system with 4 resistance and 3 voltage inputs. Its main purpose is to measure water, fuel, or other liquid levels, but you can also use it to measure voltage or temperature.

One of this module’s special features is a built-in, programmable alarm signal relay, which you can configure to output a signal of 1 amp if an alarm is triggered.

SPECIFICATIONS

PICO

Operating

• Power source voltage range: 6 - 35 VDC
• Temperature range: From -20°C up to 70°C (-4°F up to 158°F)

Power consumption at 12V

• Operating, WiFi On, 100 % illumination: 90 mA
• Operating, WiFi Off, 70% illumination: 35 mA
• Operating, WiFi Off, 0% illumination: 18 mA
• Power Off, logger still active: 5 Ma

Display capabilities

Current

• Range: -999.99 to +999.99 A
• Resolution: 0.01 A
• Voltage
• Range: 0 - 75 VDC
• Resolution: 0,001 V
• Amp hours (Ah): ±0,1 Ah

Temperature

• Range: -40°C up to + 150°C
• Resolution: 0,1°C /°F
• SOC - STATE OF CHARGE: 0 - 100 %

Wi-Fi

• Radio Frequency Band: 2,4 GHz

Monitoring capabilities

• Batteries: up to 6
• Shunts: up to 24
• Temperature sensors: up to 10
• Tank level sensors: up to 14
• Inclinometer sensors: up to 2
• SPU-303: up to 10

SC303

Operating

• Voltage range: 6 - 35 VDC
• Temperature range: From -20°C up to 70°C (-4°F up to 158°F)

Power consumption at 12 V

• Operating: 1.2 mA
• Current measuring range: 0.01 - 300 A
• Accuracy: ± 1%
• Resolution: 0.01 A
• Sampling rate: 100 ms

Maximal current

• Continuous: 300 A
• Peak current (<5min): 400 A
• Peak current (<1min): 700 A
• Voltage drop at 300A: 37,5 mV
• Maximal voltage on terminals: 35 V

Voltage inputs (U1, U2) 2

• Range: 0 - 75 VDC
• Accuracy: ± 0.3 %
• Resolution: 1 mV
• Sampling rate: 100 ms

Resistance inputs (R1, R2, JST socket) 3

• Range: 0 Ohm–65 kOhm
• Accuracy: ±3 %

Temperature sensor – NTC 10k

• Range: From –13°C to +80°C
• Accuracy (from –10 to +60°C, from 14 to 140°F): ± 3,0%
• Communication: SiCOM

Installation and dimensions

• Dimensions: 125 x 70 x 22 mm | 4.92 x 2.75 x 0.86 in
• Battery connection: M10 bolts

ST107

Operating

• Voltage range: 6 - 35 VDC
• Temperature range: From -20°C up to 70°C (-4°F up to 158°F)

Power consumption at 12 V

• Operating: 2.5 Ma

Voltage inputs (U1, U2, U3) 3

• Range: 0 – 75 V
• Accuracy: 1 mV
• Resolution: ± 0.3 %
• Sampling rate: 100 ms

Resistance inputs (R1, R2, 53, R4) 4

• Range: 0 Ohm – 65 kOhm
• Accuracy: ± 3 %
• Sampling rate: 100 ms
• Dimensions: 112 x 72 x 31 mm
• Connectivity: SiCOM
• Alarm contact: 1
