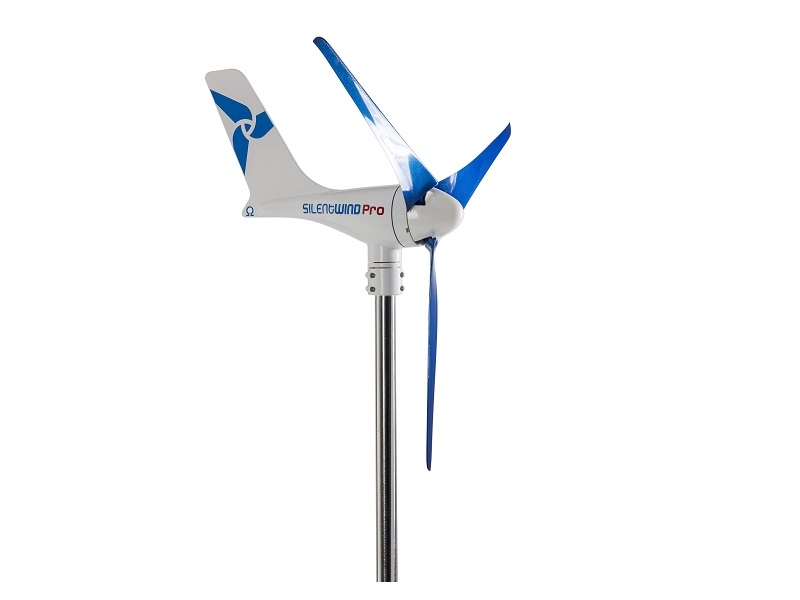

Silentwind PRO 12V – 12V and 420W Wind Generator
Silentwind PRO 12V – 12V and 420W Wind Generator

Silentwind PRO 12V – 12V and 420W Wind Generator

€ Price on request (vat incl.)

€ Price on request (vat not incl.)

Manufacturer: Silentwind

Part Number: 217

Our Ref.: 118703

PRO 12V is a very silent wind generator from Silentwind, ideal for many applications such as boats, offshore buoys, oil platforms, off-grid systems, caravans, remote homes.

Marine: Enjoy Energy Independence – With Our Safe and Quiet Generator

The Silentwind wind generator is designed to charge batteries on sailing vessels by converting wind energy into electricity. The generator has been developed and produced for use in marine environment. It can be used in various wind conditions: small, medium and high.

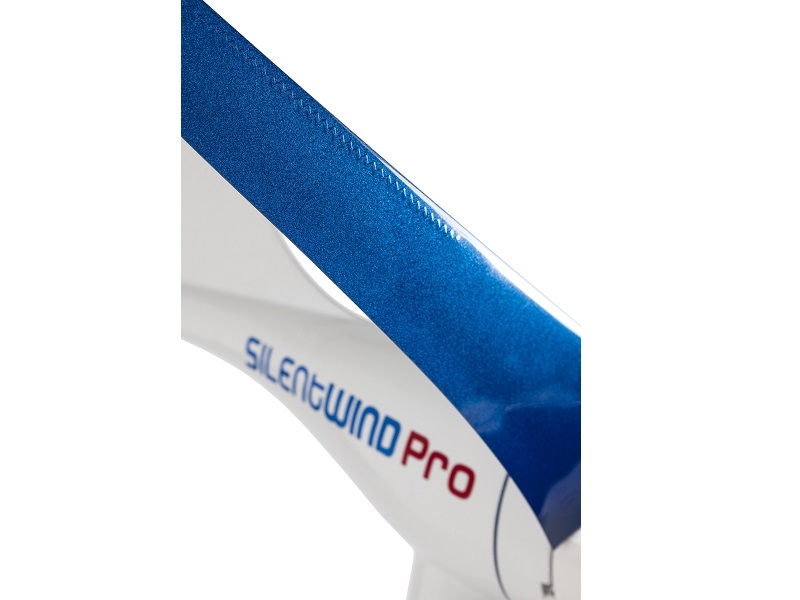

Silentwind is lightweight (6kg), built in aluminum alloy suitable for marine environment, corrosion protected, stainless steel shaft, waterproof sealed bearings. The Silent Power Blades are produced in carbon fiber, hand-laminated, with great resistance and minimum noise emission, which is the great differentiator of the Silentwind.

The charge controller is external, hybrid (wind and solar energy), has multifunction display and integrated stop switch (electronic / manual).

The parameters can be adjusted directly in the controller or through the application that is available in IOS and Android. Among the available parameters are the brake module, which allows the maximum current adjustment, and the load cut-off voltage module, which regulates the maximum charge voltage of the batteries.

Silentwind starts charging with only 4kn wind, generating 50W at 14kn and 100W at 19kn. As maximum it generates 420W (Generators 12V) at 29kn.

The mast supports are developed for vibration absorption and consequent noise reduction.

Offshore Buoys: Energy Independence – Wind and Solar Energy

Offshore buoys provide real-time meteo-oceanographic information. The incorporation of a renewable energy source allows to increase the autonomy of these buoys, reducing the maintenance effort. The energy generated by wind generators is easily incorporated into the data storage and transmission systems in the buoy.

Oil Platforms: Enjoy Energy Independence – With Our Safe and Quiet Wind Generator

The Silentwind wind generator is designed for battery charging by converting wind energy into electricity. The generator has been developed and produced for use in harsh environments. It can be used in multiple wind conditions: small, medium and high. Silentwind is lightweight (6kg), built in aluminum alloy suitable for marine environment, corrosion protected, stainless steel shaft, waterproof sealed bearings and sealing caps.

Caravans and Motor Homes: Electrical Autonomy Solutions in Caravans And Motor Homes - Wind And Solar Power Wherever You Go!

Wind-Solar hybrid systems complement each other. Throughout the day the production of solar energy follows a relatively constant production pattern. The production of wind energy, can produce in the period of low or nonexistent solar radiation, serving as a complement to the solar system. This characteristic gives this type of system a greater reliability with respect to the continuity of electrical production over time.

Silentwind generators are easy to install and maintain. Slent Power Blades are made in carbon fiber, hand-laminated, with high strength and minimal noise emission. The charge controllers are hybrid, suitable for wind power (maximum 40A) and solar power (maximum 20A).

The Silentwind starts charging with only 4kn wind, generating 50W at 14kn and 100W at 19kn. Maximum charge is 420W (Generators 12V) at 29kn.

Off-grid: Energy Autonomy – Wind-Solar Hybrid Systems

Off-grid systems are characterized by not being connected to the grid, ie the self-sustaining system is powered by generators, charge controllers, inverters and batteries. In these systems the energy stored in the batteries is the only source of energy. For missing moments of energy production is necessary to correctly size the storage system (batteries) and the production of energy (generation).

FEATURES

  • Universal application for low, middle and high wind
  • Rated voltage 12V
  • Rated power 420W
  • Start-up performance due to low cogging torque at 2,2m/s wind speed
  • Permanent magnet-generator
  • Aerodynamic design from aircraft-engineering
  • Powder coated aluminum housing
  • Low noise
  • Hand laminated, UV-resistant carbon blades, successfully tested according to DIN EN 61400-2 at hurricane speed 122km / h (5480 rpm, with almost speed of sound at the blade tips).
  • External hybrid boost charge controller for wind – and solar- energy with multi-function display and integrated electronic/manual stop switch
  • Durable and low maintenance
