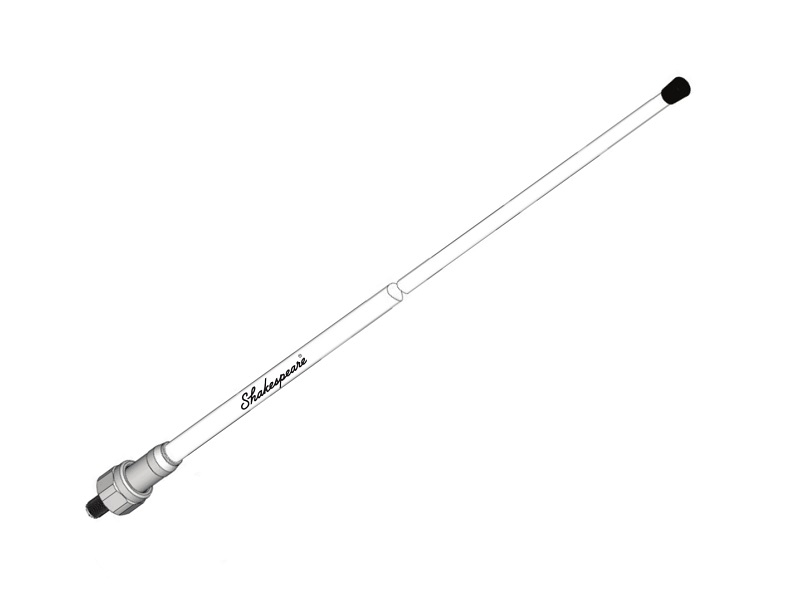

1200-CX-U - Marine VHF Antenna

This Commercial Marine VHF Antenna is carefully constructed and offers excellent bandwidth/VSWR characteristics within the frequency range of       146 - 162 MHz

Features:

• White fibreglass tube
• Brass & Copper elements for extra performace
• Wide frequency band (18 MHz) to meet the demands of professional operators (146-162 MHz)
• Chrome plated brass ferrule with 1"-11 (BSP) thread.  Fits to any 1"-11 mount
• UHF (SO239) connector at base
• Suggested mount MDM70-11



Specifications:

• Frequency Range: 146 - 162 MHz
• Gain: 3 dBi
• V.S.W.R.: <2:1 across the band
• Length: 1.2 m
• Connector: UHF (SO239) at base
• Sections: 1
• Max Input Power: 50
• DC Grounded: NO
