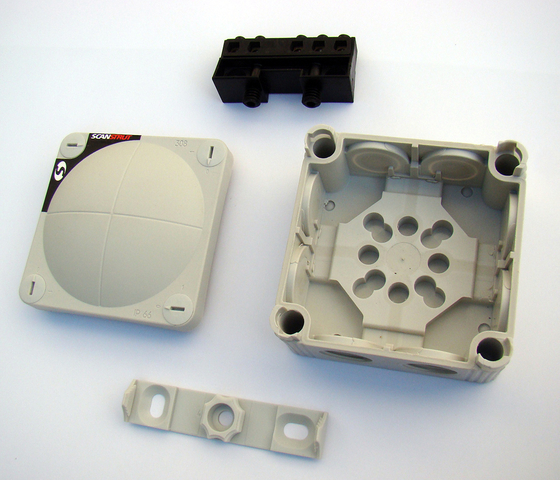

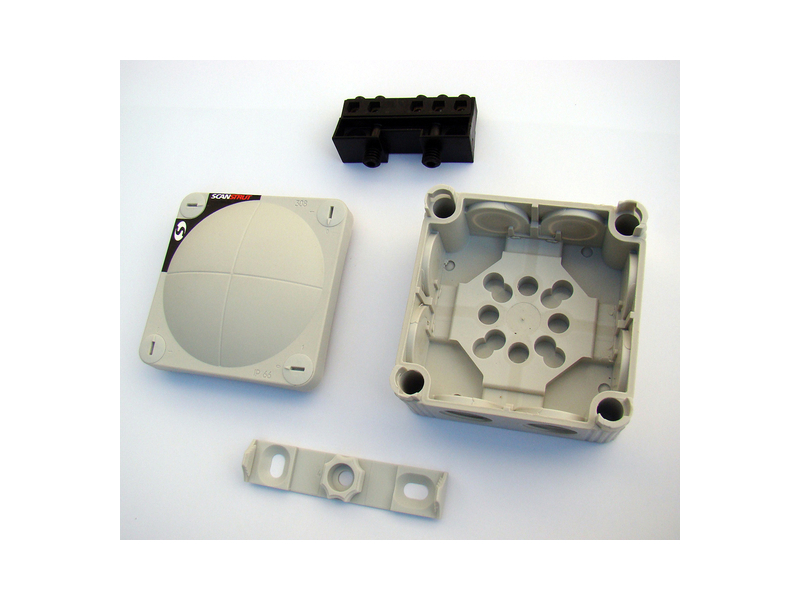

SB-8-5 Junction Box

The Scanstrut SB-8-5 Junction Box is perfect for installations if you need to create a waterproof connection for multiple electrical cables, suitable for areas such as lockers, Lazarette’s and Tender Bays, the heavy-duty junction box manufactured from marine grade polypropylene and with features 10 screw-down terminals. Additional SB-2G Cable seals required for IP67 installation.

Features:

• Supplied with 10 modular terminal blocks. Offering 10 terminations.
• Depending on the number of terminations required the terminal blocks can be individually fitted or blocked together.
• Other boxes leave the terminal blocks floating inside, where the risk of a loose connection can occur.
• Cables push fit into the terminals and are secured with a sprung leaf retention system that does not damage the wire.
• The terminal can be removed for easy fitting of cables
• Terminal securely clips into the base of the box.
• Supplied with self-tapping screws for installation.
• Supplied with an installation bracket that allows quick and easy fit and removal for inspection etc.
• Dimensions 85 x 85 x 50mm or 3.35 x 3.35 x 2 inches
