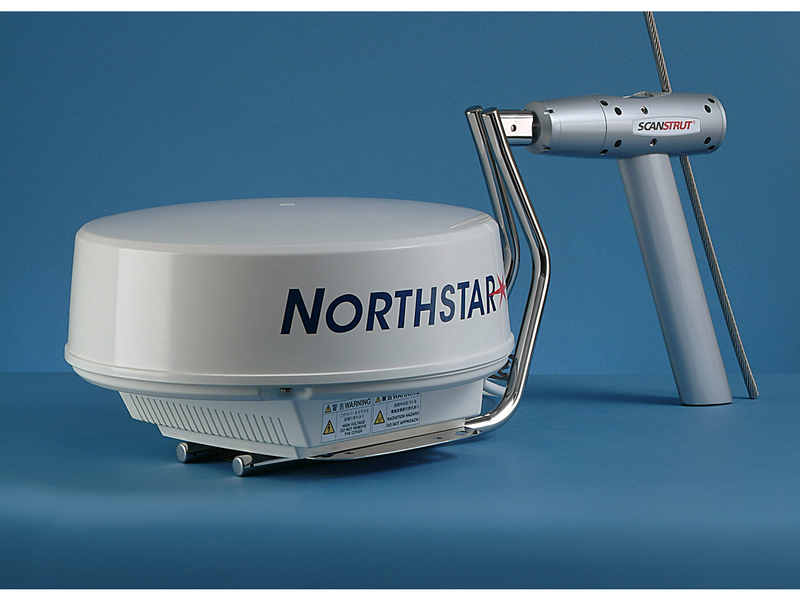

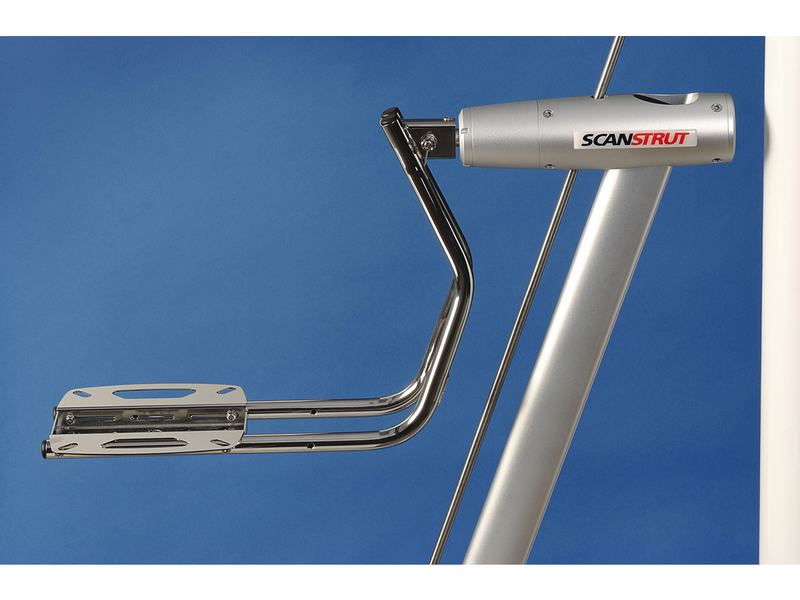

LMB-F2 Self-Levelling Mast Mount for 2kW / 4kW radomes

FOR RADOMES
Our Self-Levelling Radar Mount range ensures your radar stays level with the horizon at all times for optimum antenna performance.

As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.

Our Backstay mounted version positions your radar away from any interference, leaving a clear deck free from obstruction.

FEATURES:

HYDRAULIC DAMPING
The main levelling unit features a fine turned damping system which reacts to major changes in heel angle of the boat. It is entirely maintenance free and no power is required

BESPOKE MOUNTING POLE
2.6m (8’6”) aluminium mounting pole, supplied in 2 lengths with hidden joiner piece. Cables are routed down a cable channel for a neat install

HIGH STRENGTH UNIVERSAL BASE FOR MOUNTING POLE
Eliminates loading on backstay. base can be deck, transom or chainplate mounted

SUITABLE FOR ANY YACHT
Stainless radome cradle has a fine tune adjustment for backstay angle and the product can be installed on both adjustable and split backstays (see FAQ for further information)

NYLON BACKSTAY BUSHING SUPPLIED
Clamps around backstay allowing cable tension to be adjusted

MOUNT YOUR RADAR HIGHER
Additional 0.6m and 1.3m lengths available to mount your radome higher
