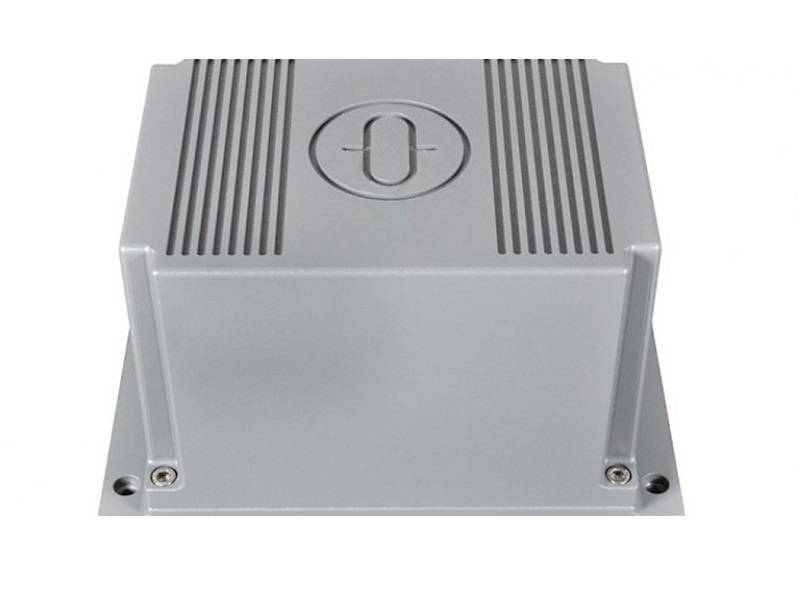

Standard 30 MF gyro compass

Maintenance-free gyro compass Standard 30 MF
Standard 30 MF is a maintenance-free gyro compass and attitude reference system based on Hemispherical Resonator Gyros for superior reliability and accuracy over lifetime.

• High accuracy and reliability
• Standard 30 MF uses superior hemispherical resonator gyro technology, known in the maritime market for more than 10 years.
• Ultra-robust design, high accuracy over lifetime without drift
• Settling time of only one hour, settles at rough sea states
• Provides heading output even if speed and latitude input fails – a significant advantage over other compass systems

Advanced functional range

Standard 30 MF provides a multitude of features and is easy to integrate into the most varied system environments.

• Heading sensor and MRU in one (roll and pitch output), thus reduction in investment and maintenance cost
• Webserver functionality for configuration, software update and diagnosis – no need of proprietary tools
• Approved as gyro compass for high-speed craft and rate-of-turn indicator

Worry-free operation

• State-of-the-art design and maintenance-free operation make Standard 30 MF perfect for demanding newbuilding and retrofit projects.
• Superior and durable HRG technology (MTBF >100,000 h)
• High cost-effectiveness over lifetime, free of maintenance
• Less complex than other strap-down compasses (such as FOGs), resulting in long lifetime and high long-term stability

HRG technology for long-term stability
Standard 30 MF uses Hemispherical Resonator Gyros (HRGs) as angular rate sensors. HRGs are vibrating resonator gyros consisting of only a few elementary pieces: single resonator and electronics for resonator control and vibration sensing, assembled in a miniature hemisphere and decoupled from the outside equipment. This simple design makes the gyro extremely reliable with no wear and tear and no need for maintenance.

Standard 30 MF - from a single gyro compass to a heading management system
Standard 30 MF can be used standalone and as part of a heading management system. The heading management system allows to connect up to 3 gyro compasses (any combination between Standard 22 NX and Standard 30 MF is possible) and integrates a magnetic compass or GNSS compass. With full redundancy in distribution compliance to demanding class notations such as DNV NAUT-OSV/OC/AW, LR IBS or ABS NIBS is achieved. Standard 30 MF can also be integrated in many existing gyro compass systems.

Main Features

• Integration of up to four compasses (up to three gyro compasses, or two gyros and a GNSS THD, plus a magnetic compass)
• Integration of existing third-party compasses
• CAN bus based real time network with up to 400m cable length
• Heading monitor
• Manual or automatic switch over of compasses
• Automatic correction of magnetic heading by deviation and variation (if the GNSS receiver provides magnetic deviation)
