RVM-100 Transom mount transducer for Axiom2 Pro and RVM-1600 sonar module

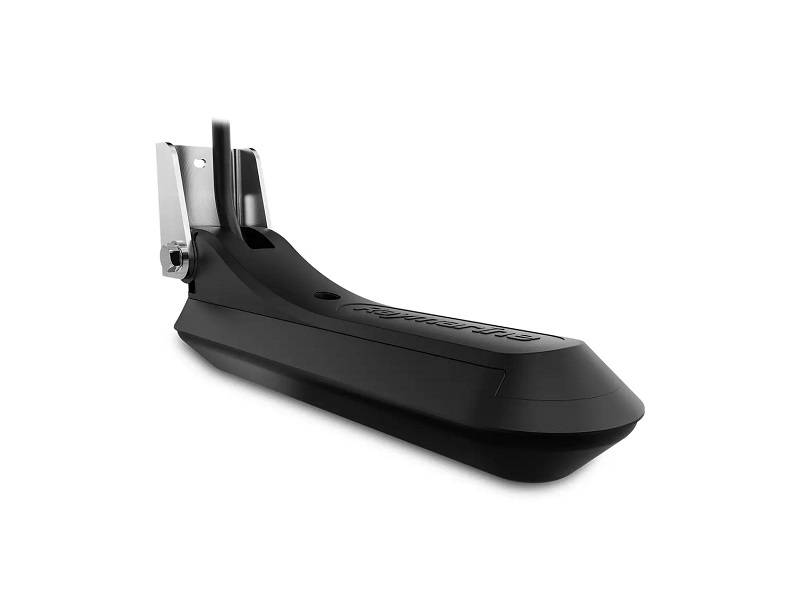

Raymarine’s RVM-100 all-in-one transom mount transducer is designed for Raymarine RealVision MAX compatible sonar modules, and RealVision MAX equipped chartplotters.

The RVM-100 lets you easily identify structures and locate fish with the life-like clarity of RealVision MAX technology. The RVM-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and 3D sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion.

You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RVM-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.

The RVM-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.

For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless-steel step-mounting bracket (A80479, sold separately.)

SPECIFICATIONS:

• Sensors: Temperature sensor, AHRS (Attitude and Heading Reference System) sensor
• Sonar channels: RealVision Max 3D, SideVision, DownVision, Conical High CHIRP 600 W @ 200 kHz
• Beam width: 200 kHz: 12°
• Dimensions (LxH): 256.6 x 120.5 mm
• Cable length: 8 m (26.2 ft)
• Weight (including brackets): 0.647 kg (1.42 lb)
• Waterproof rating: IPx6 (surfaces exterior to hull only), IPx7, IPx8
• Storage temperature range: -20°C (23°F) to + 70°C (158°F)
• Operating temperature range: -2°C (28.4°F) to + 55°C (131°F)
• Standards: EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2
• Sonar range: CHIRP sonar = 0.6 M to 365 m, DownVision = 0.6 M to 182 m, SideVision = 0.6 M to 91 m , RealVision Max 3D = 0.6 M to 91 m
