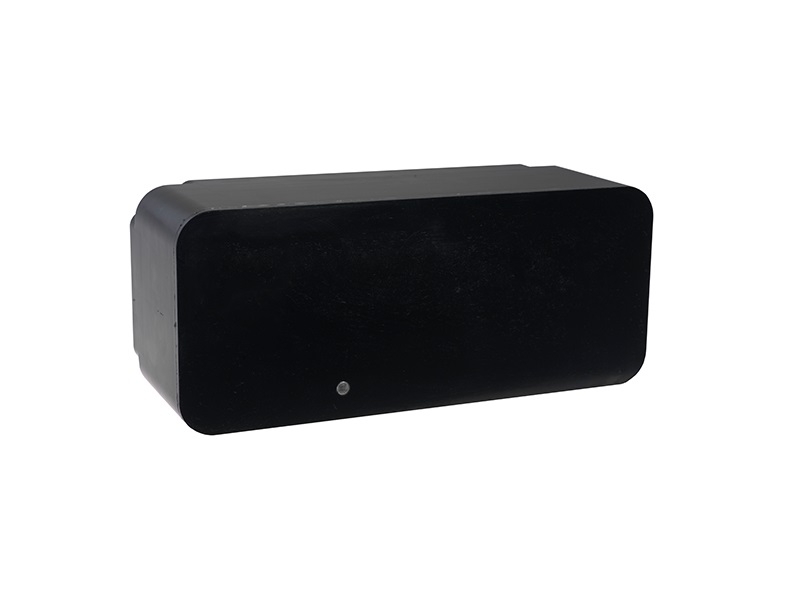

PM111LH-W - 2kW D/T In Hull/Pocket/Keel Mount Low-High Wide Beam Transducer

PM111LH-W transducer features a constant 25 degree beam angle for the entire High CHIRP spectrum. The result is improved shallow water coverage while maintaining the high resolution capabilities associated with the High CHIRP channel. Available in a variety of configurations, there

SPECIFICATIONS

• Installation: Pocket / Keel
• Material: Urethane
• Power (RMS): 2KW
• Max Depth (Ft): L: 6,000 / H: 800
• Frequency (KHz): L: 38-75 / H: 150-250
• Beam Width (L/H): L: 25°-16° / H: 25°
• Records: Depth / Temperature
• Approved Hull Material: Fiberglass
• Cable Length (Ft/M): 6ft / 2m
• Supported Deadrise / Transom Angles: Installation Dependent
