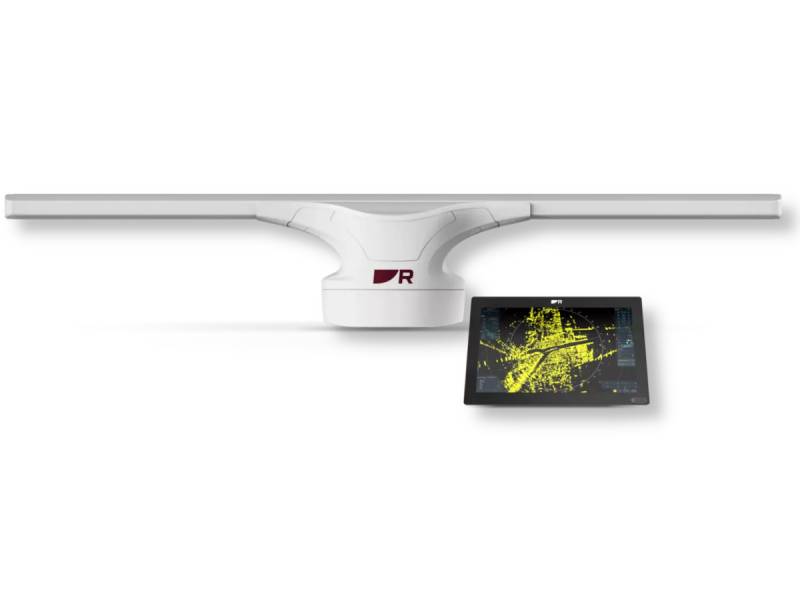

Pathfinder 16 - CAT 3 Solid-State Commercial Radar System with 16" Display

Pathfinder Radar

Raymarine is disrupting the commercial marine market with a cost-effective and easy-to-install, IMO-compliant solid-state X-band radar system – the Pathfinder Commercial Radar. Also available as Subscription Based Navigation, for one predictable monthly cost.

Purpose-Built for Offshore Situational Awareness

The revolutionary Pathfinder marine radar system is built on Raymarine’s award-winning radar technology and is designed for type-approved CAT 1, CAT 2 and CAT 3 SOLAS vessels. Pathfinder radars deliver trusted radar performance for cargo ships, superyacht, OSV and naval applications. Each system uses Raymarine’s proven solid-state technology and innovation scanner design to deliver exceptional resolution and detection capabilities even in the most challenging maritime conditions.

Pathfinder 16 Key Features

• Designed for type-approved CAT 3 SOLAS vessels up to 500 gross tons, including workboats, superyachts and tugs
• Provides superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology
• 16" HD resolution displays protected from oil and contaminants using Raymarine’s HydroTough™ nano-coating technology
• 6' fan-less, solid-state open array antenna with simplified cabling and lightweight design reduces installation time
• New interface allowing access to key functions without distracting from the main radar screen
• Subjected to rigorous environmental testing for increased reliability and lower cost of ownership
• Designed for compliance with IMO standards IEC 62288 and IEC 62388.

Simplified Installation

Designed to be easily retrofitted, Pathfinder is half the weight of comparable radars and comes with small-diameter interconnect cables. This helps to simplify cable runs and reduces installation time.

Crystal Clear Returns

Pathfinder is driven by a fan-less, six-foot, low-profile open array antenna, delivering exceptional clarity and an intuitive user interface.

Built to Last

Each model incorporates Raymarine's ruggedized marine display technology and is subjected to rigorous environment testing, significantly increasing the longevity of the system.

Designed with Operability At The Core

Pathfinder is a highly advanced solid-state radar that delivers exceptional clarity and an intuitive user interface. It's driven by a fan-less, six-foot, low-profile open array antenna that provides superior target separation and increased long-range resolution using CHIRP pulse compression and beam sharpening technology. Pathfinder's solid-state transmitter delivers performance exceeding a 12kW magnetron, meeting and exceeding all IMO performance requirements for target detection.

Designed for compliance with IMO standards IEC 62288 and IEC 62388, Pathfinder CAT 1, CAT 2 and CAT 3 commercial marine radars stand out for their reduced maintenance, enhanced longevity, and ease of operation.

Software updates and support are built into every Pathfinder Radar, and now available as a single monthly subscription so there's no separate service contract to track.

SPECIFICATIONS

DISPLAY

• Screen Size: 15.6”
• Resolution: 1920 x 1080 pixels
• Illumination: 1300 nits
• Viewing Distance (m): 0.6
• Weight (kg): 5.9
• Dimensions (mm): 248.22 x 394.9 x 174.95

ANTENNA

• Antenna Size: 6ft
• Antenna Type: Slotted Array
• Polarization: Horizontal
• Beamwidth (Vertical): 25°
• Beamwidth (Horizontal): 1.32°
• Rotation Speed (rpm): 12, 24, 36, 48, 60
• Max Wind Speed: 100 Kn
• Weight: 12 Kg

TRANSCEIVER

• Max Range Scale: 96 Nm
• Rotation Speed (rpm): 12, 24, 36, 48, 60
• Power Connection: 1
• Data Connection: 1 (Raynet)
• Transmitter Frequencies (Mhz): 9370, 9400, 9430
• Receiver Characteristics: Linear
• Receiver Noise: < 5 dB
• Peak Power Output: 110 W
• Power Consumption (Typical): 95 W
• Power Consumption (Standby): 30 W
• Power Consumption (Max): 195 W
• Dimensions (mm): 388 x 360 x 335
• Weight: 16 Kg

RANGE - PULSE WIDTH

• 0.25 NM: 46 ns
• 0.5 NM: 46 ns
• 0.75 NM: 192 ns
• 1.5 NM: 192 ns
• 3 NM: 2300 ns
• 6 NM: 3900 ns
• 12 NM: 17600 ns
• 24 NM: 35000 ns
• 48 NM: 79000 ns
• 96 NM: 79000 ns

RANGE - PRF

• 0.25 NM: 4.8 kHz
• 0.5 NM: 4.8 kHz
• 0.75 NM: 4.8 kHz
• 1.5 NM: 4.8 kHz
• 3 NM: 4.8 kHz
• 6 NM: 4.8 kHz
• 12 NM: 3.6 kHz
• 24 NM: 1.6 kHz
• 48 NM: 0.82 kHz
• 96 NM: 0.7 kHz

PROCESSING

• Minimum Range: Better than Minimum Range detailed in IEC 62388
• Range Discrimination: Better than Range Discrimination detailed in IEC 62388
• Range Accuracy: Better than Range Accuracy detailed in IEC 62388
• Bearing Discrimination: Better than Bearing Discrimination detailed in IEC 62388
• Bearing Accuracy: Better than Bearing Accuracy detailed in IEC 62388
• Warm Up Time: Better than Warm Up Time detailed in IEC 62388
• Orientation Modes: H-UP, STAB H-UP, C-UP, N-UP
• Stabilization Modes: Ground, Sea
• Motion Modes: True, Relative
• Target Tracking: 100 Targets (Auto or Manual)
• AIS: 4000 Displayed | 6000 Processed
• Past Positions: Off, 1-30 mins
• Vectors: Off, 1-30 mins
• Trails: Off, 1-30 mins
• Radar Maps: >10 >100 points per map
• Acquisition Zones: 2
• PI Lines: > 10 PI lines

Note:

1. (MSC.192/5.4.1) With own ship at zero speed (or at a fixed land-based site), an antenna height of 15 m above the sea level and in calm (minimal clutter) conditions, the navigational buoy (with corner reflector) in Table 2 shall be detected at a minimum horizontal range of 40 m from the antenna position and up to a range of 1 NM, without changing the setting of control functions other than the range scale selector

2. (MSC.192/5.5.1) The radar system shall be capable of displaying two point targets on the same bearing, separated by 40 m in range, as two distinct objects.

3. (MSC.192/5.2) The radar system range and bearing accuracy shall be:

Range: within 30 m or 1 % of the range scale in use, whichever is greater;

Bearing: within 1° in typical operational and environmental conditions.

4. (MSC.192/5.5.2) The radar system shall be capable of displaying two-point targets at the same range, separated by 2,5° in bearing, as two distinct objects.

5. (MSC.192/5.8) The radar equipment shall be fully operational (run or transmit status) within 4 min after switch-on from cold. A standby condition shall be provided, in which there is no operational radar transmission. The radar shall be fully operational within 5 s from the standby condition.

RANGE RINGS

• 0.25 NM: 0.13 NM
• 0.5 NM: 0.25 NM
• 0.75 NM: 0.25 NM
• 1.5 NM: 0.5 NM
• 3 NM: 1 NM
• 6 NM: 2 NM
• 12 NM: 3 NM
• 24 NM: 4 NM
• 48 NM: 8 NM
• 96 NM: 12 NM

INTERFACING

• Displays - Ethernet Ports: 3 PoE RayNet (10/100/1,000 Mbits/s)
• Displays - IEC-61162-450 Enabled: Yes
• Displays - Buzzer Output: 2 Bare-ended wires
• DCU (A80792) - Serial Port Inputs: 8 Configurable Opto-isolated
• DCU (A80792) - Serial Port Outputs: 6 Configurable ISO-Drive™ isolated
• DCU (A80792) - Alarm Output: 1 Alarm output relay (N/O and N/C contacts) | Activated on System Fail or Specific Alert ID:
• DCU (A80792) – LAN: 10/100BaseT, automatic polarity detection
• Data Sentences (Pathfinder Radar System) – Input: AAM, ACK, ACN, ALR, APB, BWC, BWR, DBT, DPT, DSC, DSE, DTM, GBS, GGA, GLC, GLL, GNS, GSA, GST, GSV, HBT, HDG, HDT, MDA, MSK, MSS, MTW, MWV, NSR, RMA, RMB, RMC, ROT, RRT, RTE, SRP, SSD, THS, TLB, TTD, TTM, VBW, VDM, VDO, VHW, VLW, VSD, VTG, WPL, XTE, ZDA
• Data Sentences (Pathfinder Radar System) – Output: AAM, ACK, ALC, ALF, ALR, APB, ARC, BWC, BWR, DBT, DPT, DTM, EVE, GBS, GGA, GLC, GLL, GNS, GSA, GST, GSV, HBT, HDG, HDT, MDA, MSK, MSS, MTW, MWV, OSD, RMA, RMB, RMC, RRT, RSD, RTE, SRP, TLB, TTD, TTM, VHW, VLW, VTG, WPL, XTE, ZDA

POWER SUPPLY

• Transceiver: V (DC) - 24 (via VCM100) / AC - 110/230v via AC Power Kit
• Pathfinder Radar Displays: V (DC) - 24 / AC - 110/230v via AC Power Kit
• Pathfinder DCU: V (DC) - 24 / AC - 110/230v via AC Power Kit

ENVIRONMENTAL

• Open Array (E70621) - Waterproof Rating: IPx6
• Open Array (E70621) - Operating Temperature Range: -25°C to +55°C (-13°F to 131°F)
• Open Array (E70621) – Humidity: Up to 93% at 40°C (104°F)
• Open Array (E70621) - Maximum Wind Speed: 100 kn
• Displays - Waterproof Rating: IPx6, IPx7
• Displays - Operating Temperature Range: -25°C to +55°C (-13°F to 131°F)
• Displays – Humidity: Up to 93% at 40°C (104°F)
• DCU (A80792) - Waterproof Rating: IP40
• DCU (A80792) - Operating Temperature Range: -25°C to +70°C (-13°F to 158°F)
• DCU (A80792) – Humidity: Up to 95% at 55°C (131°F)
