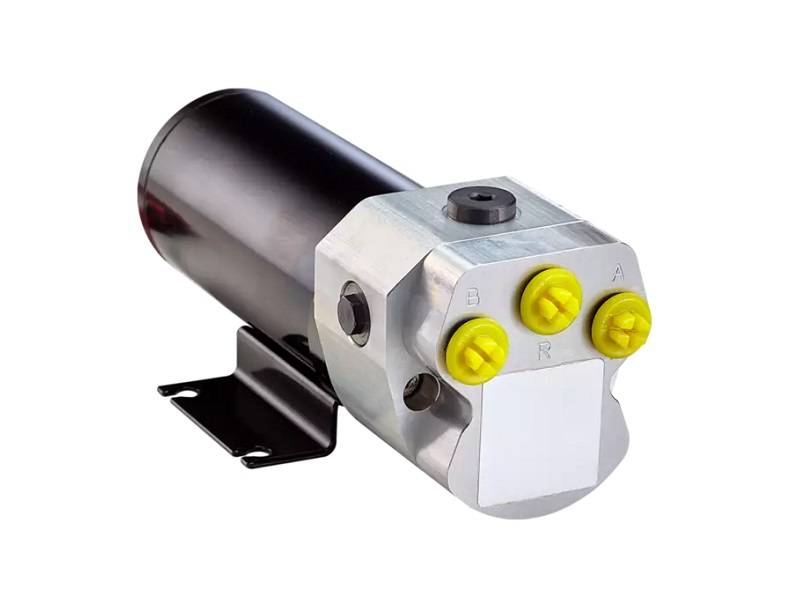

Type 2 /12v Hydraulic Pump

Type 2 /12v Hydraulic Pump

€ 1.220,00 (vat incl.)

€ 991,87 (vat not incl.)

Manufacturer: Raymarine

Part Number: M81121

Our Ref.: 101197

M81121 is a constant running hydraulic pump, type 2 for 12V systems, for Raymarine autopilots.

Description
Downloads

SPECIFICATIONS

  • Vessel Displacement: Does not apply here. The drive unit is matched to the ram capacity of the steering system
  • Ram Capacity: 230cc – 350cc (14in3–21in3)
  • Maximum Stall Pressure at 12V: 100bar (1450psi)
  • Peak Flow Rate (No Load): 2000cc/min (122in3/min)
  • ACU Used: ACU-400
