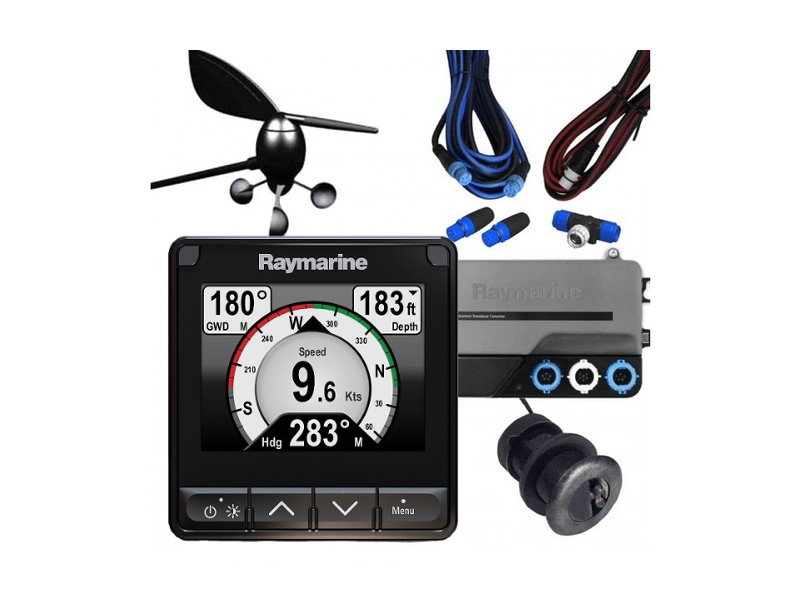

i70s System Pack

I70s instrumentation display package, DST800 speed and depth transducer, iTC-5 transducer converter, short arm transducer and 3M backbone, T piece, power and 2 terminators.

Raymarine's i70s multifunction instrumentation display offers the flexibility to display instrument and navigation data that will be most important to you. The i70s comes equipped with a bold and bright 4.1 "display and is easy to customize between digital, analog and graphics displays for depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and sensors.

Main features i70s:

• Rated Voltage: 12 V DC
• Voltage Range: 9 to 16 V DC
• Consumption: 1.7 Watts
• Installation: Surface Mount
• LCD brightness: 1,200cd / m2
• Display 4.1 "TFT LCD 16 bit - 320 x 240 pixels
• Color palettes: 4 palettes - 2 days, inverse and red / black
• Operating Temperature: -20 ° to 55 °
• Storage Temperature: -30 ° to 70 °
• Relative Humidity and Waterproof Protection: 93% max. IPX6 | IPX7
• Connections: 1x SeaTalkng® connector
• Certifications: NMEA 2000 certification pending • Europe 2004/108 / EC • Australia and New Zealand C-Tick, compliance level 2
• Languages: 20 languages available

DST800 Analog Depth, Speed, and Temperature Transducer for Hitch Mount

Main Features:

• Transducer in plastic hull, compatible with hull in fiberglass or aluminum
• Power: 100W
• Frequency: 200 KHz
• Compatibility and Connection: ST60 +, i50 and ITC5
• Depth, Velocity and Temperature Measurements
• Dimensions (mm): 75 x 125mm

The ITC-5 instrument transducer converter instantly converts analog data to Seatalkng digital protocol. The iTC5 Instruments transducer data converter allows the use of analog transducer data with the latest Raymarine digital instrumentation displays.

Main Features:

• Nominal supply voltage: 12V Dc
• Operating Voltage: 9-16V Dc
• Current: <150 mA
• Consumption: 1.5 W
• Operating Temperature (° C): -15 - 55
• Storage Temperature (° C): -25 - 70
• Relative humidity: max 95%
• Splash Proof Protection: IPX2
• Connections: Seatalkng backbone, 1x Seatalkng spur, 5x connections for transducer with spade terminals
• Dimensions (mm): 44.3 x 93.1 x 151.1mm
