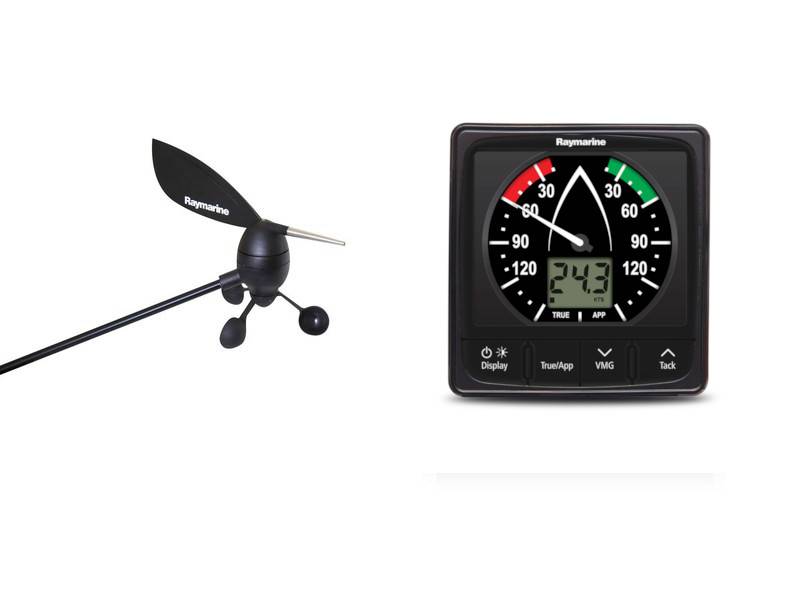

i60 Wind Pack, with Short Arm Vane Transducer

The Raymarine i60 Wind anemometer is the instrument designed to complete the i70 range and has been primarily designed for use on sailboats. This anemometer combines digital and analog data and is compatible with the Raymarine e & c series.

With i60 Wind, you can calculate apparent / true wind speed / angle (true wind requires SeaTalk velocity data over water).

This instrument presents itself as a fundamental tool for the navigation of sailboats, with its large analogue digits that ensure an excellent viewing angle, day or night, with the red background illumination of the dial, to improve its visibility.

The advantages of the i60 Wind are its simplicity and functionality, verified through the great controls it has.

Main features:

• Rated voltage: 12 VDC
• Operating voltage: 10-16 VDC
• Power consumption: typical <1W (display only) and 2.4W maximum with transducer connected.
• Current consumption: 45 to 65mA (display only) and 200mA maximum with transducer on
• Operating temperature: -20ºC to + 55ºC
• Connections: 2 x SeaTalk and Transducers. Compatible with CAN marine industrial systems
• i60: Large analog indicator
• SeaTalk and SeaTalkng Interfaces
• NMEA2000 interface (compatible)
• Interface for integrated transducer
• Dimensions 110mm x 115mm, identical to Raymarine's older ST60 + instrumentation
• Large controls for easy use at sea
• Low power consumption
• Supports multiple data sources to eliminate potential data conflicts
• Front-mount design for easy installation.
• Protection Rating: IPX6

Wind Speed and Angle Transducer with 30 meter cable

Key Features:

• Short arm vane supplied with 30m (97.5') cable
• Long arm vane supplied with 50m (162.5') cable
• Short Arm Length (Metal Rod) = ~300mm
• Long Arm Length (Metal Rod) = ~600mm

Compatible Models

• i60, iTC-5, ST60+, ST60
