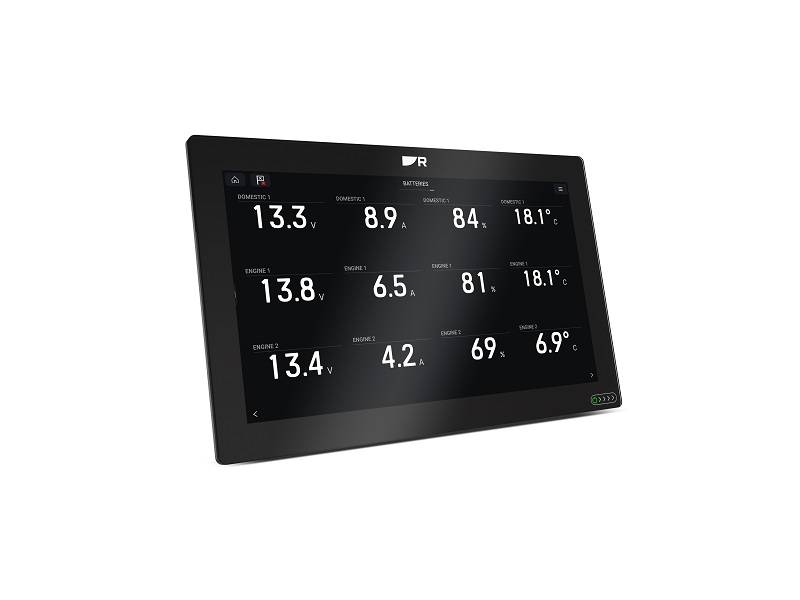

AXIOM 2 XL 16 – 15.6” Glass Bridge Chartplotter

PREMIUM GLASS BRIDGE CHARTPLOTTERS

Axiom 2 XL, the flagship of the Axiom® family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough™ displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.

POWER THAT PUSHES THE LIMITS
Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.

READY FOR ALL CONDITIONS
Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colours, and excellent sunlight visibility.

SMART BACKLIGHTING
Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.

REMOTE CONTROL
Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.

ONE DISPLAY- ENDLESS POSSIBILITIES

Discover More
Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.

Upgrade your Awareness
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.

Turn Night Into Day

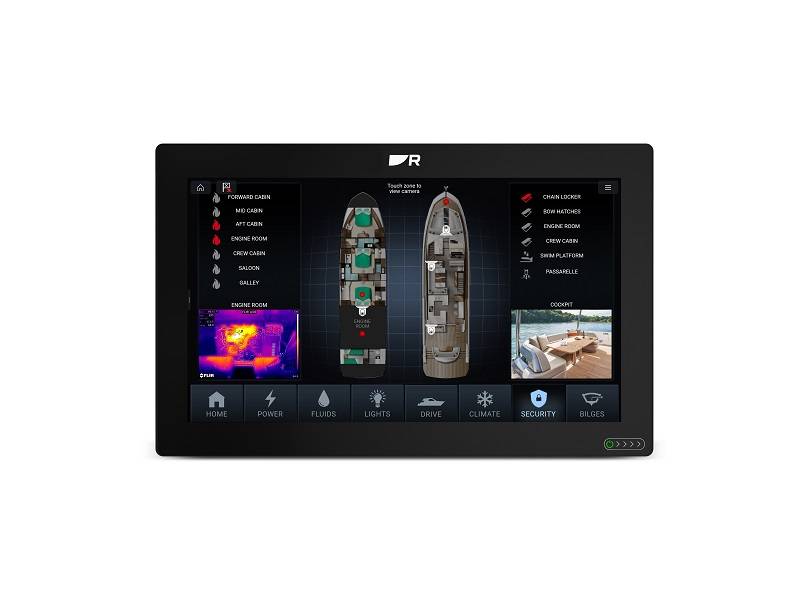

FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.

Fish to the Max

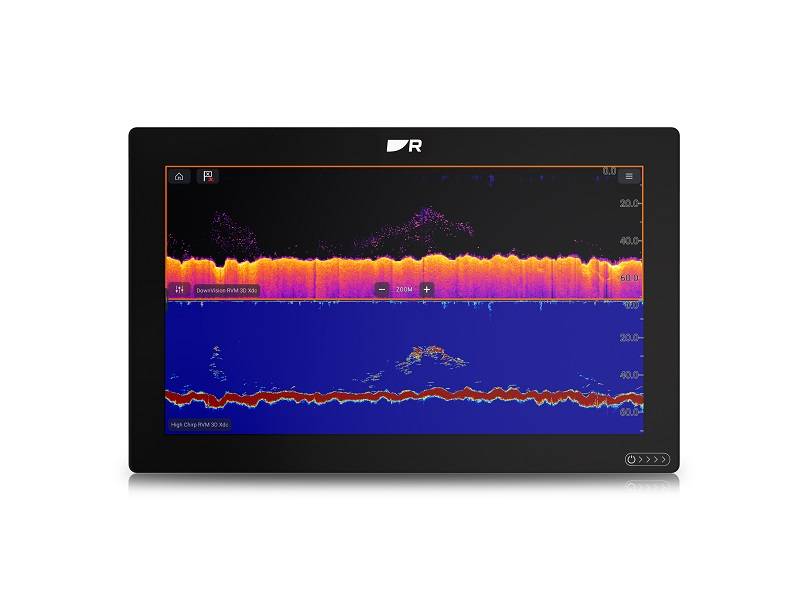

Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.

Advanced Sailing Tools
Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.

Navigate with Confidence

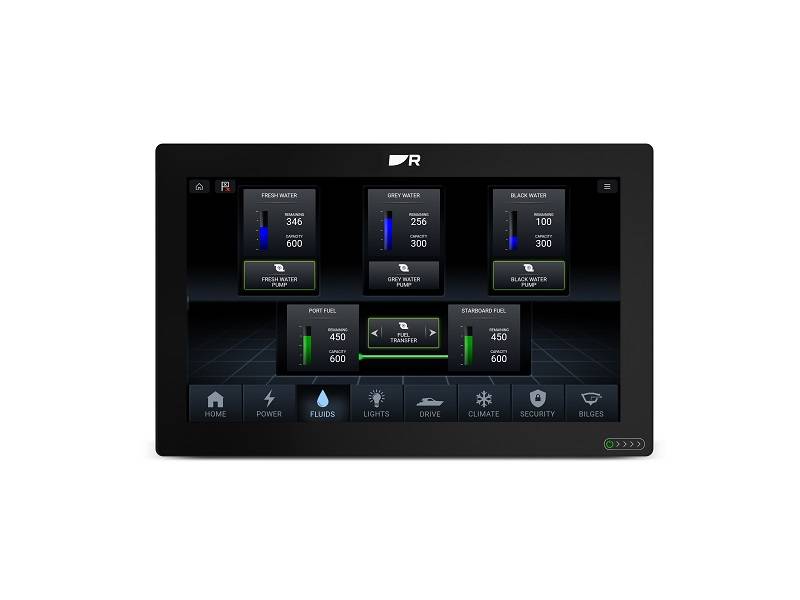

Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display

Make Smarter Decisions
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.

Advanced Engine Integration
Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.

Stream, Watch, and Listen
Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 XL on the big screen with HDMI output.

SMARTER BOATING

Stay Connected
Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.

Axiom on your Smartphone
Built-in Wi-Fi lets you view and control your Axiom 2 XL on your phone or tablet with the Raymarine Mobile App.

Do More with LightHouse Apps
Expand the capabilities of our Axiom 2 XL with third-party apps from our marine technology partners. Explore LightHouse Apps for Axiom

UNLEASH THE POWER OF AXIOM 2 XL
Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.

AXIOM 2 XL KEY FEATURES

• Slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
• Get underway faster with a fast 6-core processor
• HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
• Smart back lighting and an ambient light sensor automatically adjusts display brightness for day and evening
• Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
• Three power-over-Ethernet ports simplify remote camera and RMK-10 remote keypad connectivity
• Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems

SPECIFICATIONS

ENVIRONMENTAL

• Operating temperature: -25°C to +55°C (-13°F to 131°F)
• Storage temperature: -30°C to +70°C (-22°F to 158°F)
• Relative humidity: up to 93% @ 40°C (104°F)
• Waterproof rating: IPx6, IPx7

PHYSICAL

• Dimensions (HxWxD): 248.22 x 394.9 x 174.95 mm
• Weight: 5.9 kg
• USB connection: USB-A: Touch input, USB-B: Touch output
• Accessory connection: USB Micro B
• GPS antenna connection: TNC type connector
• External storage: Remote card reader required
• Ethernet connection: PoE RayNet (10/100/1,000 Mbits/s) x 3
• HDMI connections: HDMI in, HDMI out
• NMEA 2000 connection: DeviceNet connector
• Audio output: Left and Right RCA connectors via Power/Video/Audio cable.
• NMEA 0183 Support: Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721)
• Analog video connections: Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2)
• Wireless connections: Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
• External alarm connection : Bare-ended wires x 2
• Internal storage: 64 GB Solid State

LCD

• Size (diagonal): 15.6”
• Resolution: 1920 x 1080 pixels
• Illumination: 1300 nits / 1300 cd/m2
• Ratio: 16:9
• Viewing angle: ToP 88° / Bottom 88° / Left 88° / Right 88°
• Type: IPS (In-Plane Switching)
• Color depth: 24-bit
• Number of simultaneous touches: 2

POWER

• Power consumption @ 12 V dc: 76.56 W
• Power consumption @ 24 V dc: 71.53 W
• Off current @ 12 V dc: PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
• Off current @ 24 V dc: PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
• Current: 8.56 A
• PoE operating voltage range: 9.5 V dc to 32 V dc
• Operating voltage range: 8 V dc to 32 V dc
• Fuse rating: 15 A
• Nominal supply voltage: 12 V dc / 24 V dc
• LEN (NMEA 2000 Load Equivalency Number): 1

WHAT'S IN THE BOX?

1. MFD (Chartplotter)
2. Mounting gasket tape
3. Rear mounting bars x 2
4. Mounting bar fixings (M5x20 pozi countersunk) x 4
5. Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4
6. Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
7. Documentation
8. DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
9. RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
10. Power/Video/Audio cable 1.5 m (4.92 ft) right-angled
