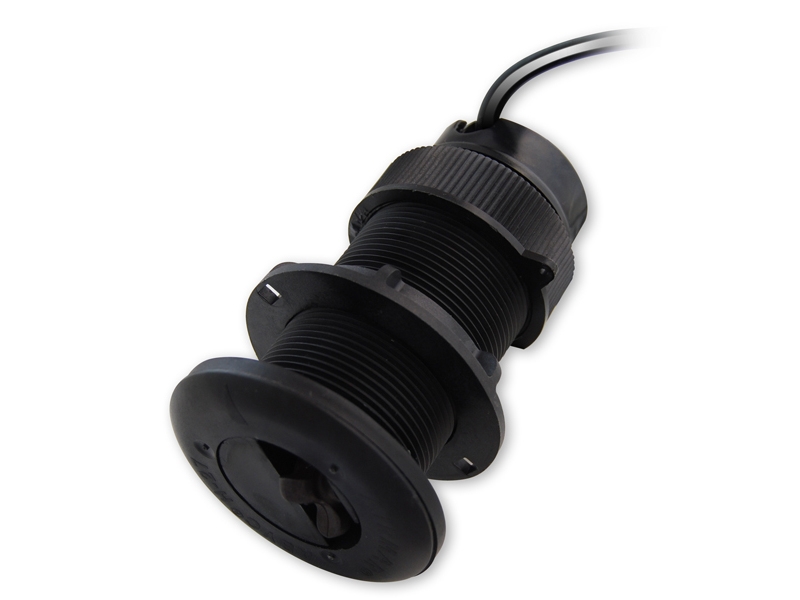

A22165 DT800-0 - 0° Through Hull Depth / Temperature Plastic Smart Transducer

The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6').

Key Features

•Depth and Temperature transducer
•Compatible hull material: wood and fiberglass
•Hole diameter for installation: 2"

Specifications

• •Weight: 0.9 kg (2 lb)—Plastic
  •Temperature Accuracy: ±0.5°C (±1.8°F)
  •Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
  •NMEA 2000® Load Equivalency Number (LEN): 4
  •CE Regulation: Complies to IERC60945
