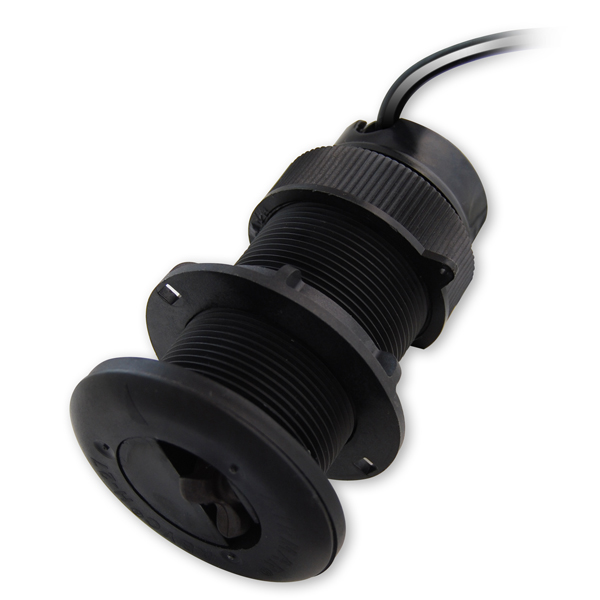

A22112 DT800-12 - 12° Through Hull Depth / Temperature Plastic Smart Transducer

The DT800 is a low-profile, retractable, thru-hull sensor that computes accurate depth and temperature data and sends it to any NMEA 0183 or NMEA 2000® display. The DT800 operates at a frequency of 235 kHz and can run simultaneously with other Airmar 50/200 kHz transducers on-board with no interference. The broadband ceramic delivers depth readings to 183 m (600'), as well as accurate shallow-water readings in as little as 500 mm (1.6').

Key Features

• Depth and Temperature transducer
• Compatible hull material: wood and fiberglass
• Hole diameter for installation: 2"

Specifications

• Weight: 0.9 kg (2 lb)—Plastic
• Temperature Accuracy: ±0.5°C (±1.8°F)
• Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
• NMEA 2000® Load Equivalency Number (LEN): 4
• CE Regulation: Complies to IERC60945
