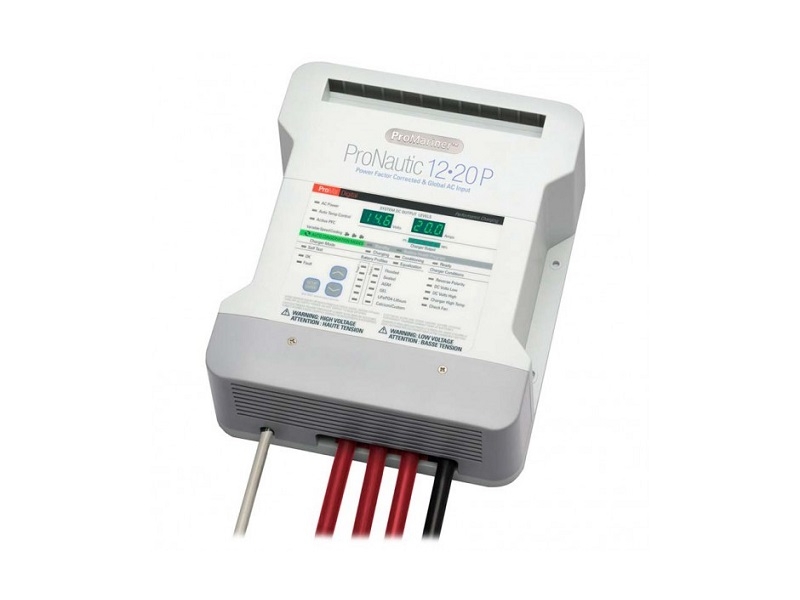

ProNautic 1220P - 12V | 20A Battery Charger

The third generation of digital chargers, the Pronautic series combines digital load control with software conversion technology with global energy management functions. Once batteries are properly charged and packaged, ProNautic's Energy Saving Mode will supervise and maintain the batteries fully automated, providing only load when needed and keeping the battery properly charged while at the same time significantly reducing the AC power consumption .

The ProNautic range is designed for the growing demand of electronic devices that are currently connected to the 12V network of powerboats, sailboats, or sport fishing.

With 12 digitally controlled charging profiles and a full digital display, the ProNautic battery charger offers functions not found in other chargers, such as self-diagnostic functions, real-time voltage / amperage data, possible fault indicators or a monthly reconditioning that will greatly extend the life of the batteries. The ProNautic series is designed to give you more time to browse while enjoying your favorite activities, such as fishing.

Features:

• 12 Load Profiles: Up to 12 selectable profiles with four load stages - Loading, Packaging, Maintenance, Reconditioning
• Power-saving mode: After charging and charging the batteries, the ProNauticP charger's power-saving mode will supervise and maintain batteries only when necessary, maintaining the maximum charge level
• Exclusive Distribution Technology as required: The charger detects and distributes the available amperage to any connected Battery Bank or a combination of banks
• Automatic Fan Speed Control: Quiet operation. Its innovative front heatsink prevents restrictions on airflow and cooling.

Key Features:

• Voltage: 12V
• Current: 20 A
• Phase load: 4 phases
• Battery Banks: 3
• Input Voltage: 100 - 240
• Amperage at 100 / 240V AC: <5.0 / <2.5
• Cycles: 50/60
• Dimensions: 260 x 216 x 89 mm
• Weight: 2.27 kg

To download the files simply click on the desired files to select and then click the Download button at the bottom .

800x600

pronautic_manual_en.pdf
