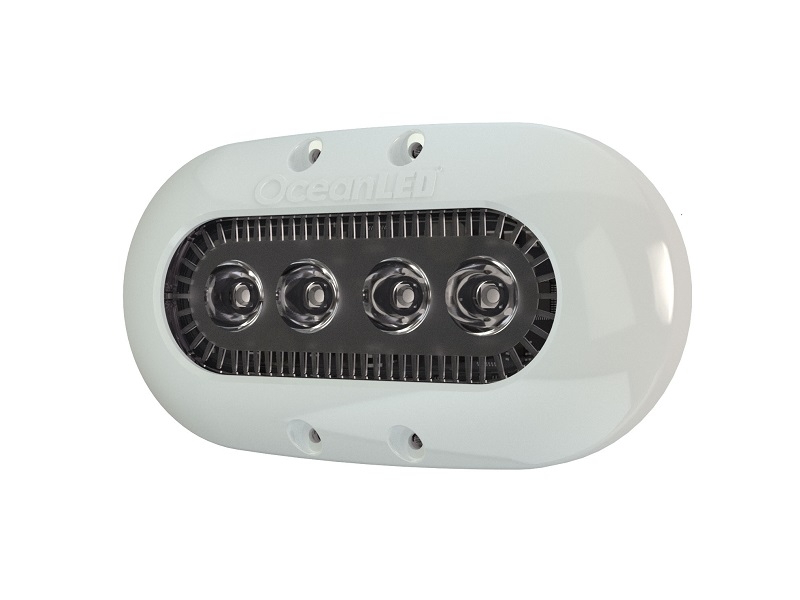

X4 Ultra White - Underwater LED Light

The X4 gives stunning performance, allowing you to enjoy more time on the water with family and friends.

The X4 outputs an impressive 1,150 fixture lumens from its low profile design and utilizes focused optics to produce a 60˚ circular beam from each LED, providing great water penetration and illuminating a large area.

ABOVE WATER MOUNTING
The X Series can also be used as an exterior light for your cockpit, deck or trailer..

COMPACT AND SIMPLE DESIGN
Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light.

SIMPLE TO INSTALL
Installation needs only a small, 12.5mm hole in the hull to feed the cable through and 4 screws to hold in place. No bonding required.

EASY TO CLEAN
Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use your boat.

ACTIVE THERMAL CONTROL
ATC prevents overheating. In the event of overheating the ATC system will reduce the LED power level in order to protect the LEDs, or in extreme cases, turn off the fixture completely.

Main Specifications:

• Lumens 1450
• Fixture Lumens 1150
• Typical LED life expectancy 40,000+ Hours
• Minimum-Maximum operating voltage DC 9-32V DC
• Current / Amp draw (DC) 12V DC 0.8A 24V DC 0.4A
• Approx. light penetration (avg. water quality) 20’ (6m)
• Approx. Light penetration (perfect water quality) up to 45’ (13+m)
• Driver type Internal, Reverse Polarity Protected
• Boat size up to 30’ (9m)
• Transom / Hull spacing 2-3’ (0.5-1m)
• Transom quantity 2-4
• Installation depth (to top of fixture) 4-8” (10-20cm)
• Total weight 350g (0.78lbs)
• Extension cable length (standard) 9.84’ (3m)
• Hole cut-out for cable entry 0.5” (12.5mm)
• Material Chemically resistant optical polymer
