Eyes HD Gen2 - Steel Underwater Ocean Camera (PAL version)

“View your own underwater aquarium in high definition.”

Never miss the moment the fish strikes or when you’re lucky enough to have a pod of dolphins swimming with you. Cockpit mounting means you get a different view of the event and can provide evidence of your winning catch.

The new EYES HD Ocean Camera can be mounted anywhere allowing you to capture the magic of your own underwater aquarium beneath your boat in full 1080p High Definition video.

Can be added to a CCTV system to increase security

Suitable for Fiberglass, GRP and wooden hulls, and also suitable for aluminum/steel hulls using the Delrin Isolation Sleeve accessory. Tritonium™ optical lens is scratch and sea growth resistant.

FEATURES

• Allows user to view activity / fishing action under vessel in high definition. Helps anglers see potential catches / the ones that got away.
• Provides evidence of the catch.

FULL 1080P HIGH DEFINITION
Capture the magic of your own underwater aquarium beneath your boat in full 1080p High Definition video. With 1984 x1105 pixels the Eyes HD catches more of the action in high definition.

COMPACT AND SIMPLE DESIGN
Aluminum Hard Anodized Body; Stainless-Steel Bezel

SIMPLE TO INSTALL
35mm hole in the hull.

EASY TO CLEAN
Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth, saving hours of scrubbing each time you use it.

SPECIFICATIONS

TECHNICAL

• Minimum Illumination: 0.1 LUX
• Minimum-Maximum operating voltage: DC 9-14V DC
• Current / Amp draw (DC): 12V DC 110mA MAX
• Effective Pixels: 1984 (H) x 1105 (v)
• H. Resolution: 1080 TV Lines
• Video Output: HD-SDI @ 30fps
• S/N Ratio: More than 50dB
• Minimum Exposure Time: 1/60,000sec
• Lens: 3.7mm
• Operating Temperature: 14°F~122°F (-10°C~+50°C)

PHYSICAL

• Total weight 65g (2.3oz)
• Extension cable length (standard) 10m (30’)

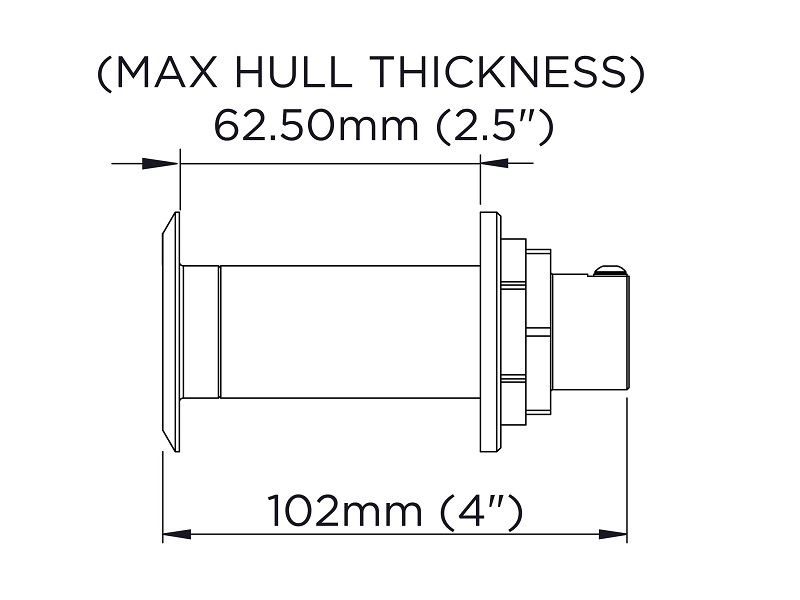

• Hole cut-out for cable entry 35mm (1.38”)
• Material: aluminum Hard Anodized Body | AB2 / Steel Bezel
