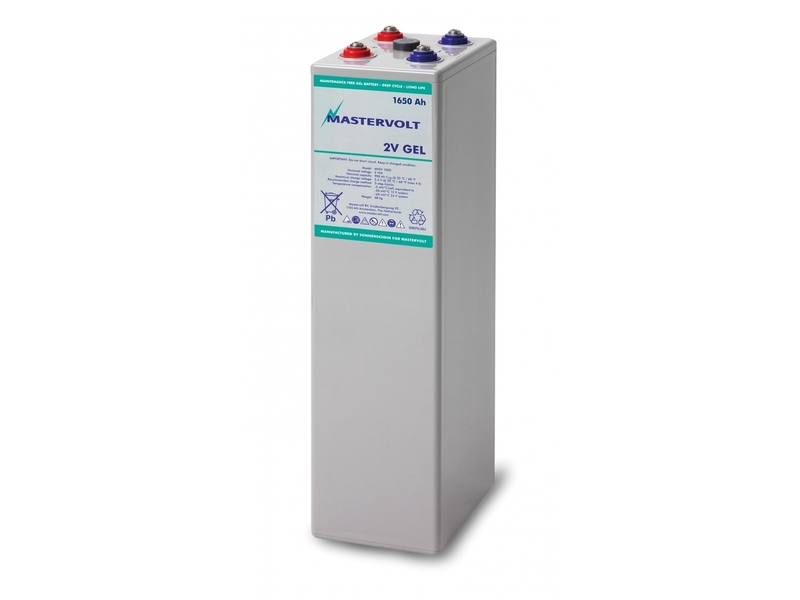

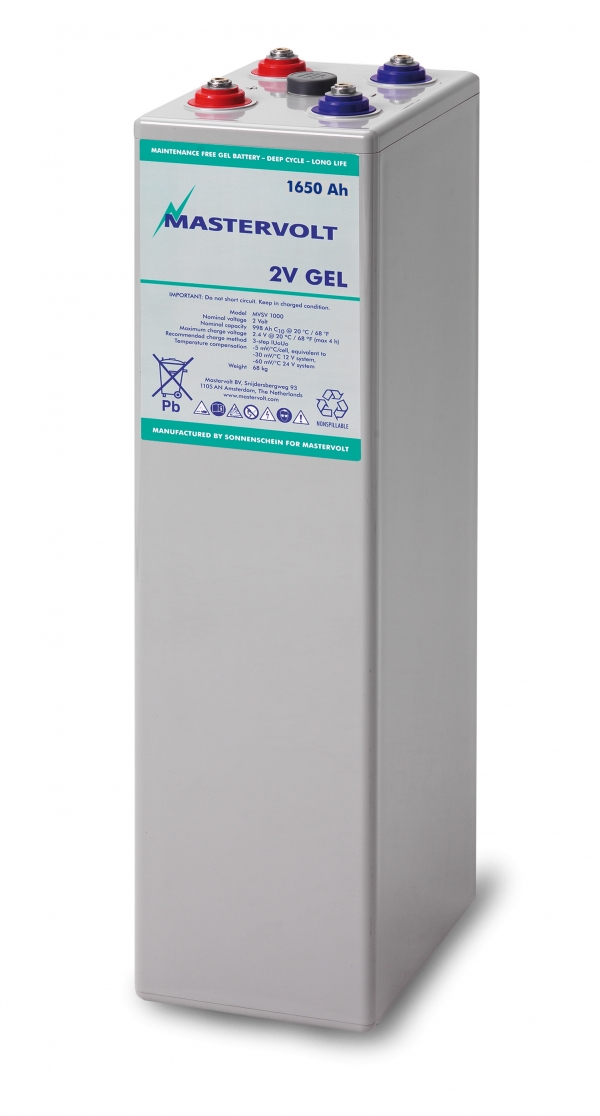

MVSV 1650 - 2V / 1650 Ah MVSV Gel Battery

FEATURES

• Ideal for large systems that require intensive use and a very long lifespan.
• For intensive cycle use with a high number of charge/discharge cycles.
• Charges quickly.
• Highly sustainable battery for large installations.
• Robust build for longer lifespan.
• Deep discharging without problems.
• Can be installed horizontally or vertically.
• Seven-year warranty (pro rata).

General Specifications

• Nominal battery voltage: 2 V
• Nominal battery capacity C10 (battery capacity at a discharge time of 10 hours, till 1.8 V per cell): 1497 Ah
• Max. charge current: 750 A
• Battery terminals : F-M8
• Max. outer dimensions (incl. terminals/grip handles), lxwxh: 212 x 277 x 690 mm | 8.3 x 10.9 x 27.2 inch
• Weight: 95 kg | 209.4 lb
