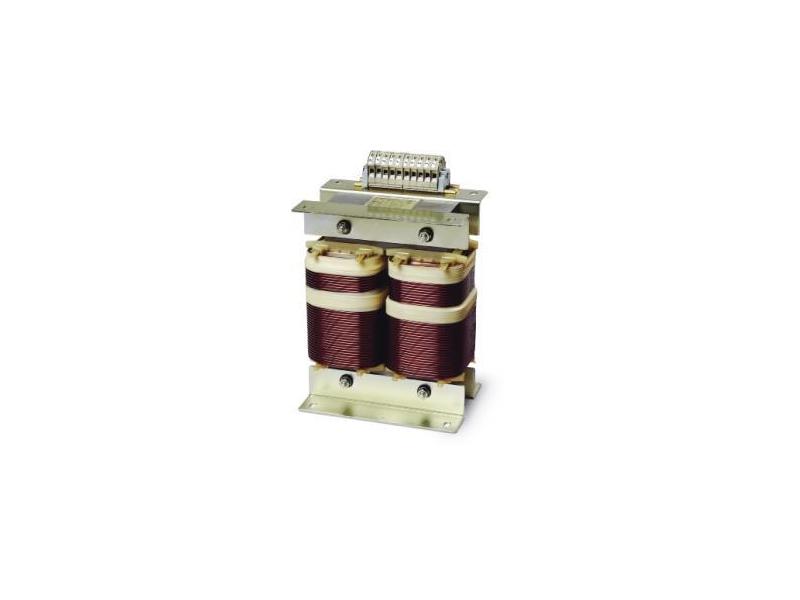

IVET 10 – 10000W Isolation Transformer (without cabinet)

A safe connection between vessel and shore installation is an essential part of your electrical system. A galvanic electrical isolation between shore power and the on-board power prevents any electrical corrosion of metal parts while keeping you earthed.

IVET Heavy-duty Series

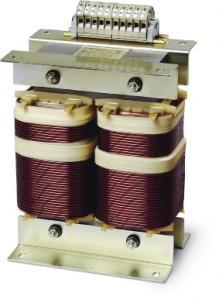

High-output E-core isolation transformer IVET 10 without casing, for self-installation. The product is multi tap, meaning you can handle 120/230/240 V going in and out.

Mastervolt recommends to install the IVET 10 heavy-duty isolation transformer with Soft Start. Soft Start suppresses the inrush current from the transformer and prevents the power fuse from blowing.

Features:

• High-quality isolation transformers without casing for self-installation (casing is optional).
• Optional Soft Start, in synthetic casing.
• Capacities of 2.5 kW to 22 kW.

SPECIFICATIONS

GENERAL

• Output voltage (± 5 %): 120/220/240 V
• Output frequency range: 45-65 Hz
• Input voltage range: 110/220/240 V
• Input frequency range: 45-65 Hz
• Nominal input current (230 V): 44 A
• Efficiency: > 93 %
• Power: 10.000 W
• Dimensions, hxwxd: 430 x 280 x 240 mm | 16.9 x 11.0 x 9.4 inch
• Weight: 75 kg | 165.3 lb
• Approvals: CE, ABYC

TECHNICAL

• Technology: E-core
• Earth leakage protection: no
• No-load power consumption: < 10 W
• Temperature range (ambient temp.): 0 °C to 40 °C, derating power > 40 °C | 32 °F to 104 °F
• Cooling: natural cooling
• Protection degree : IP00
• Operating humidity: max. 95 %
• Soft start: option
• MasterBus compatible: no
