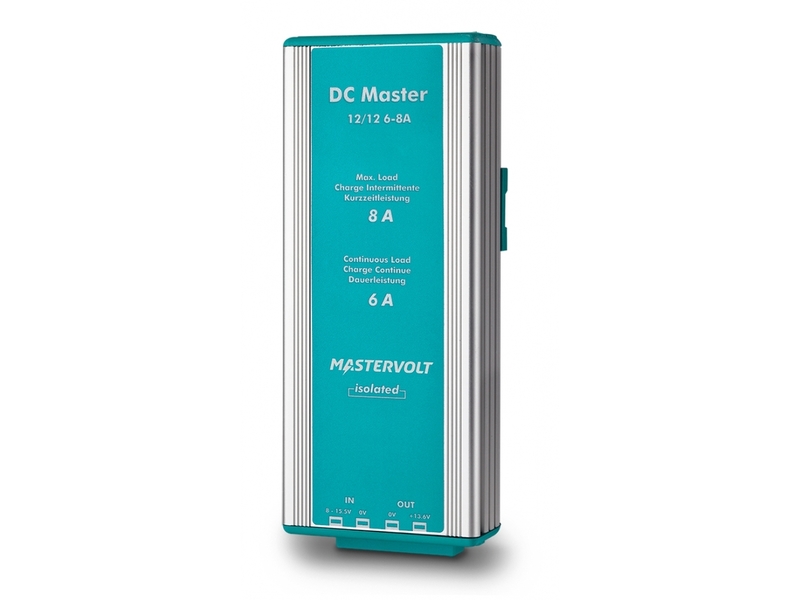

DC Master 12/12-6 – Stabilized Isolated 12/12V | 6 A DC-DC Converter

The required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.

FEATURES

• Recreational and semi-professional use.
• Easy to install using included mounting bracket.
• Excellent price/performance ratio.
• Extra touch-proof.
• Interference suppression for sensitive equipment.
• Available with negative or positive grounding.

SPECIFICATIONS

GENERAL

• Nominal output voltage: 13.6 V
• Max. output power: 108 W
• Nominal output power: 82 W
• Max. output current (for 2 min. intervals): 8 A
• Continuous output current: 6 A
• Nominal input voltage: 12 V
• Input voltage range (max.): 10-15.5 V DC (16 V)
• Galvanic isolation: yes
• Stabilized: yes
• Dimensions, hxwxd: 127 x 87 x 50 mm
• Weight: 0.44 kg
• Approvals: CE, E-mark

TECHNICAL

• DC consumption: < 15 mA
• Connections: fast-on
• Temperature range (ambient temp.): -25 °C to 80 °C, derating > 30 °C
• Cooling: natural cooling
• Protection degree: IP53
