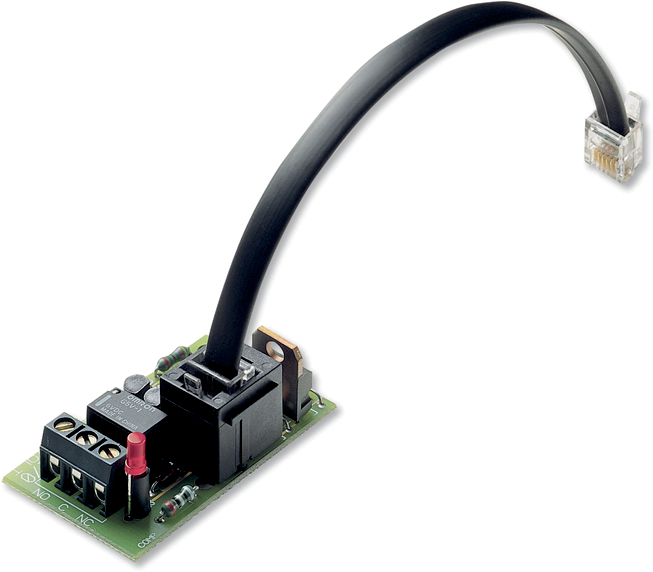

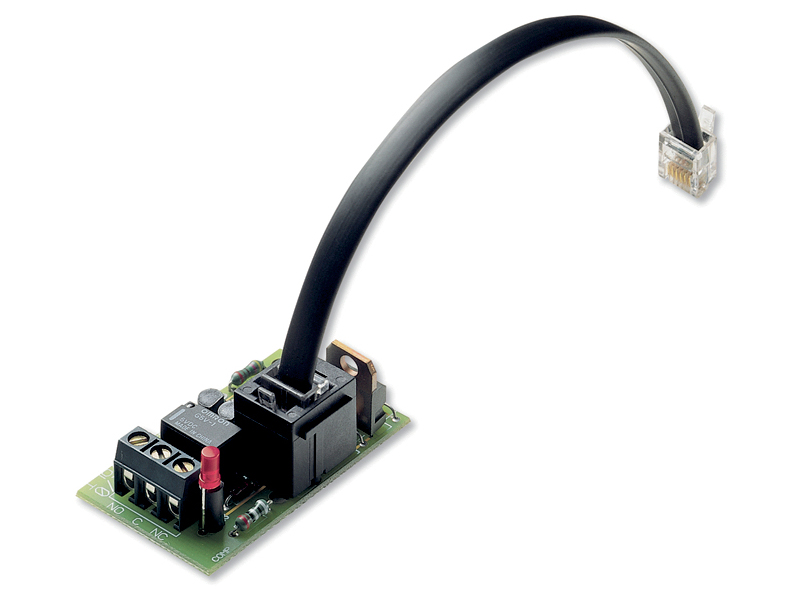

Charger Status Interface

The Mastervolt Charger Status Interface (CSI) offers you a potential free change over contact for Mastervolt battery chargers. The contact switches in case the battery charger is switched off or if the failure LED indicates an error such as high temperature, short circuit on the output, etc.

Using this contact auxiliary equipment can be switched. The maximum switching current may not exceed 1 A.
