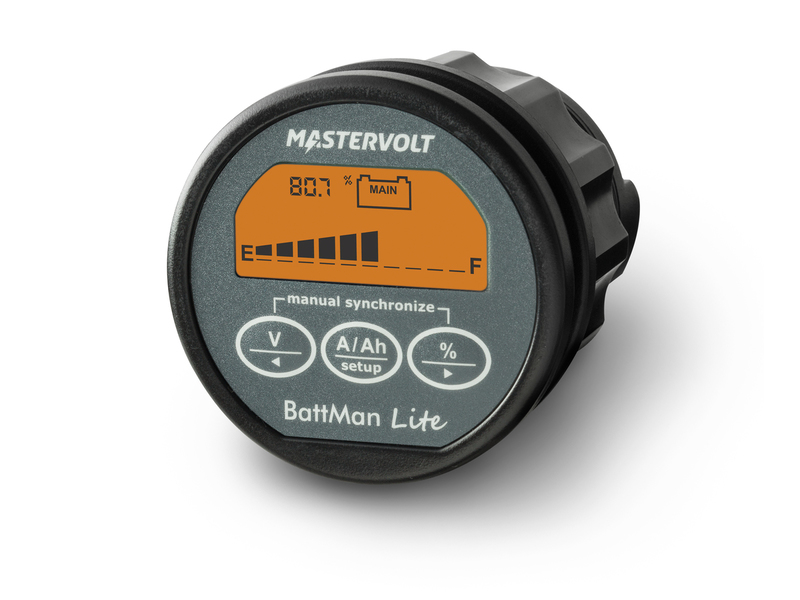

BattMan Lite – Battery Monitor

Battery monitor, 12/24 V DC with large, splash proof display (IP65) and power bar.

An affordable battery monitor that does exactly that: providing critical information about the status of your battery bank under all circumstances. Moreover it will warn you when your battery bank is empty.

SPECIFICATIONS

GENERAL

• Number of battery outlets: 2; service (fully), starter (voltage)
• Display/read-out: voltage, current, amp-hours, battery capacity in %
• Languages on display: universal
• Built-in depth: 72.5 mm
• Dimensions: Ø 64 mm, depth 79 mm
• Dimensions shunt, hxwxd: 87 x 45 x 35 mm
• Weight: 0.15 kg

TECHNICAL

• Max. Ah capacity: 9999 Ah
• Supply voltage: 9-35 V
• Voltage range: 0-35 V
• Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
• Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
• Voltage resolution: 0.1 V
• Voltage accuracy : ± 0.3%
• Shunt specification: 500 A/50 mV (service set)
• Current measurement range: 0-500 A
• Current accuracy: ± 0,4 %
• Battery alarm contact: yes, potential free
• Remaining time indication: no
• Historical data: no
• MasterBus compatible: no
• Connection cable (6-wire) necessary: yes
• Modular cable necessary: no
