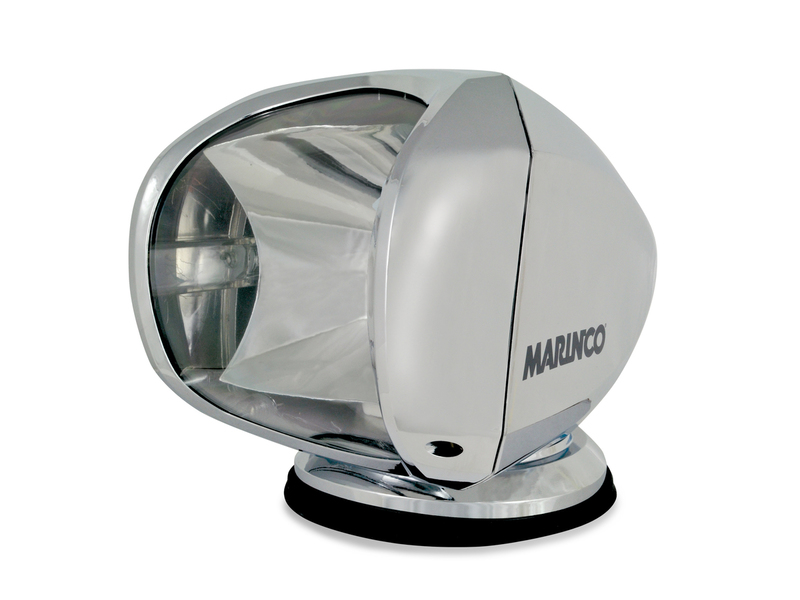

SPL-12C Spotlight –Remote Controlled Precision Spotlight Beacon. Chrome

Marinco’s new, innovative Precision Spotlight addresses the common problems found in competitive spotlights by making the most versatile, most durable, most consistent and most easy to use spotlights on the market.

With a unique and totally enclosed housing design, all of the critical components are fully protected for
long lasting operation.

The smart, wireless communication between the remote control and the Precision spotlight allow for versatility as to where the control and spotlight can be placed. The Precision spotlight comes in Universal 12 or 24 volt operation in a single design. The bright 100W H3 Halogen bulb and optimized reflector and lens provide a bright and consistent light pattern

Spotlight Features and Benefits

• Bright 100W, H3 Halogen bulb. (replaceable)
• IP56 Weatherproof housing with fully enclosed tilt function
• UV Resistant ASA Polycarbonate housing and lens
• Rich, intense beam pattern
• Super-quiet, all-weather motor with limit stops
• Designed for the harsh marine environments – moisture, salt, shock, vibration tested
• Easy snap-in mount system (Can be mounted upside-down)
• 370° sweep rotation
• 120° total tilt; +75° and -45° from horizontal
• Wireless dashboard remote is standard
• Wireless handheld and hardwired bridge remotes are optional
• Universal 12 & 24 Volt circuit

SPECIFICATIONS

• Bulb: 100 Watt, H3 Halogen
• Power (Input voltage): 12V or 24V
• Current draw (idle/in use): 0.03 amps / 7.0 amps
• Peak Beam Intensity: 210,000 candella
• Peak Beam Distance: 917 ft (280 m)
• Lux @ 66' (20 m): 525 Lux
• Coverage at 66' (25 m): 132 sq ft 12 sq m
• Rotation: 370° (built in limit stops)
• Tilt: 120° Tilt (75° up & 45° down)
• Wireless range: 200 ft (65 m)
• Dimensions: 7.5"W x 7.5"H x 9.25"D | (19cm x19cm x 23.5cm)
• Weight: 3.30 lbs (1.5 kg)
• Housing material: UV resistant PC/ASA
• Lens material: UV resistant PC
• operating temp range: 5°F–113°F (-15°C–45°C)
• IP Rating: IP56
• Finishing: Chrome
