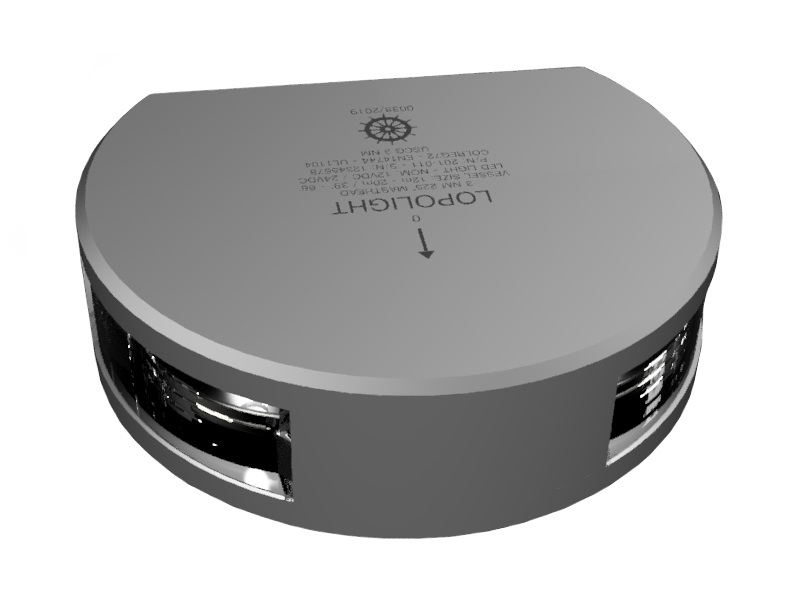

225° Masthead white light, vertically mounted, w/ 0.7m cable, visible at 3 nm for vessels 12-20m

This LED navigation light consists of two high-power LEDs that produces light in the specified angle utilizing special designed PMMA light guides.

The precision machined 6082 aluminium housingwith an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

Features

• New generation.
• LED (Light Emitting Diode) navigation light.
• Unique and precise definition of light angles.
• Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
• Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
• Waterproof to IP 68+ (submersible).
• Low power consumption – 70 to 90% less than traditional navigation lights.
• Full brightness with input voltages ranging from 10 to 32 Volts.
• All Lopolights have been tested several times during production, a total of more than 24 hours.
• Easy to install, adaptor and screws included (when applicable).

The interior is completely filled with a special potting resin making it water- and vibration proof.

Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours.

This navigation light is in compliance with the following standards:

• COLREG72
• EN14744
• IEC 60945
• USCG (UL1104)

Together with an appropriate Control & Monitoring System, such as Lopolight’s own NLC* this navigation light can form part of an IMO MSC 253(83), LY3 and LY4 compliant system.

SPECIFICATIONS

• Included in package: 1 Navigation light, pre-cabled with 0,7 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide
• Materials: Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
• Supply voltage: 10,0 – 32,0 VDC
• Power consumption: 2.9 Watt, Current @ 12 VDC: 232 mA: Current @ 24 VDC: 127 mA
• Light colors: White
• Intensity: >15 cd
• Visibility (@K=0.8): 3 nm
• Number of LED's: 1/1
• Suggested feed cables: 12 VDC: 2 x 0,50 mm2 24 VDC: 2 x 0,50 mm2
• Vessel size: 12 to 20 meters
• Mounting: Vertical
