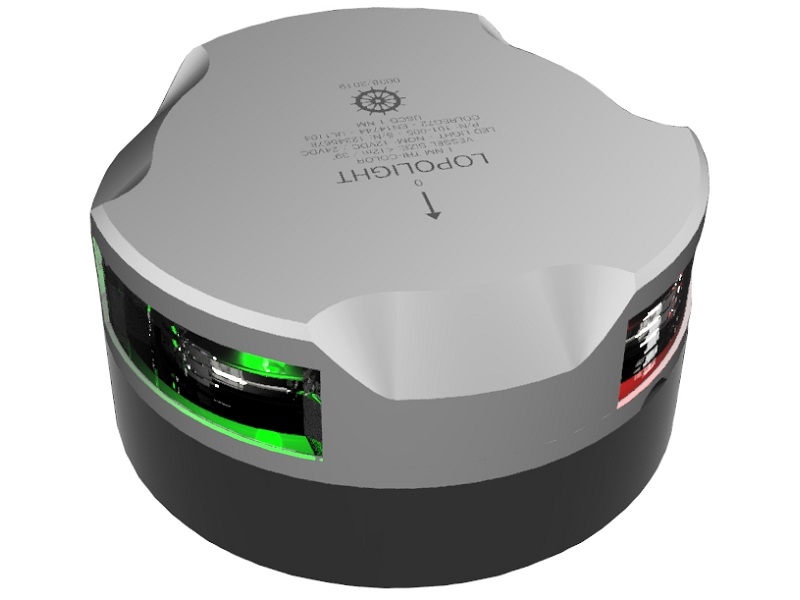

112,5°+ 112,5°+135° tri-color Navigation LED light, Visible at 1 nm w/ 0.7m Cable (horizontal mount)

This LED navigation light consists of three high-power LEDs that produces light in the specified angles utilizing special designed PMMA light guides.

The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

Features:

• New generation
• LED (Light Emitting Diode) navigation light.
• Unique and precise definition of light angles.
• Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
• Completely waterproof and vibration proof: Interior is fully filled and sealed with special potting resin.
• Waterproof to IP 68+ (submersible).
• Low power consumption – 70 to 90% less than traditional navigation lights.
• Full brightness with input voltages ranging from 10 to 32 Volts.
• All Lopolights have been tested several times during production, a total of more than 24 hours.
• Easy to install, screws included.

The interior is completely filled with a special potting resin making it water- and vibration proof. Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours.

This navigation light is in compliance with the following standards:

• COLREG72
• EN14744
• IEC 60945
• USCG (UL1104)

Together with an appropriate Control & Monitoring System, such as Lopolight’s own NLC* this navigation light can form part of an IMO MSC 253(83), LY3 and LY4 compliant system.

SPECIFICATIONS

• Included in package: 1 Navigation light pre-cabled with 0,7 meter shielded marine grade cable, 1 K-Lock PE mounting base,
• Installation guide
• Materials: Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
• Supply voltage: 10,0 – 32,0 VDC
• Power consumption: 2,3 Watt, Current @ 12 VDC: 173 mA: Current @ 24 VDC: 100 mA
• Light colors: Red/Green/White
• Intensity: Green and Red >1,2 cd | White >5,4 cd
• Visibility (@K=0.8): 1 nm
• Number of LED's: 1/1/1
• Suggested feed cables: 12 VDC: 2 x 0,50 mm2 24 VDC: 2 x 0,50 mm2
• Vessel size: 12 meters (39,4 feet)
• Mounting: Horizontal
