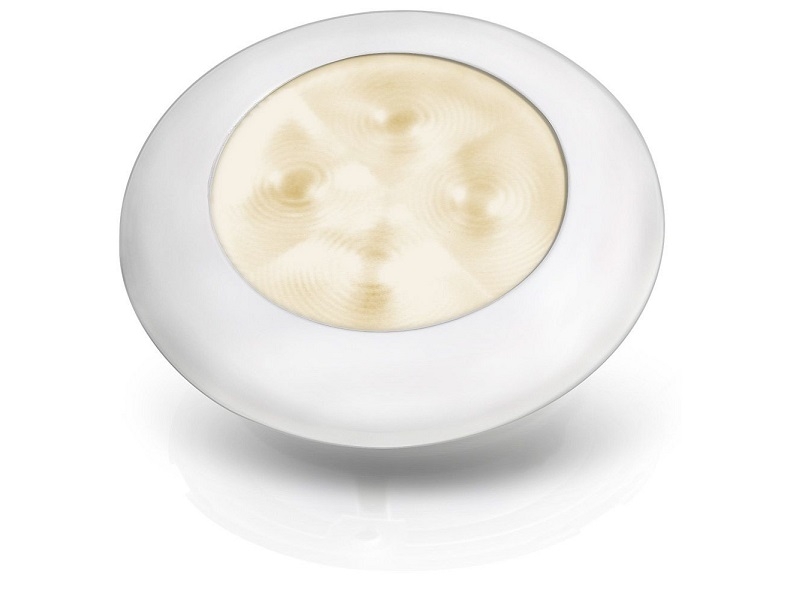

Slim Line Warm White 12V LED Courtesy Lamp w/ round white plastic frame

Attractive, energy efficient lighting for interior and exterior use. Available in nine exciting colours, Hella marine round LED courtesy lamps can be installed almost anywhere on board.

Over 3 x brighter than regular Soft Light White and Warm White LED courtesy lamps.

Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into lightweight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

SPECIFICATIONS

• Lens Material: UV resistant enhanced impact acrylic
• Rim Material: UV resistant plastic
• Dimming: Dimmed via Hella marine Dimmer 5XA 998 572-001
• Cable: Pre-wired with 120mm of single core marine cable
• Operating Voltage: 12V DC or 24V DC
• Power Consumption: < 0.5W (< 0.042A @ 12V)
• Degree of Protection: IP 67 - Completely Sealed
• Mounting: Stainless steel screws included
• Weight: 50g (including cable)
