HypaLUME 24/48V DC LED Extra Wide Floodlight - Heavy Duty

A quantum technology leap for commercial vessels, HypaLUME is Hella marine’s most powerful floodlight.

High Performance
The new range of HypaLUMEs have been designed for applications where high output lighting in extreme environments are required. These lamps can produce a net output of up to 25,000 lumens whilst consuming less than 260W.

Engineered reliability
Comprehensive sealing and anti-corrosion measures have been taken to ensure the lamps with stand the toughest conditions. The premium aluminum housing is corrosion resistant with a nonstick and easy to clean surface coating.

Proven durable materials
Heavy duty Grilamid® lens offers unbeatable toughness against impacts and vibration while providing long term UV stability and resistance to commonly used chemicals for the life of the product.

Secure installation

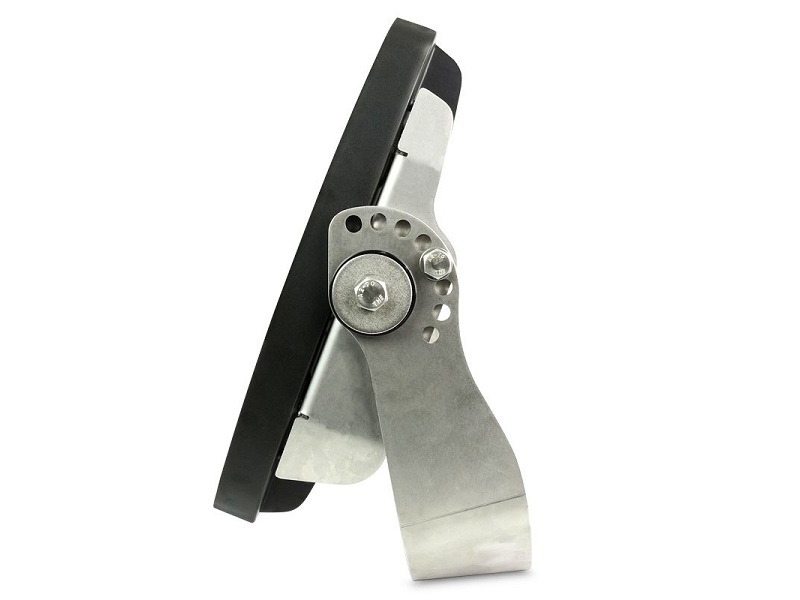

The ultra-heavy duty 316 stainless steel bracket firmly grips the HypaLUME to withstand harsh vibration and impact while also providing easy vertical angle adjustment of up to 140°.

Reliable in extreme conditions
The HypaLUMEs are designed to operate over an extreme temperature range from -40°C to +50°C. The advanced thermal management draws heat away from the LEDs to maintain the extended life guarantee offered by HELLA’s class leading 5-year warranty.

SPECIFICATIONS

• Mounting: Upright or pendant
• Operating Voltage: Optimum brightness at input voltages from 22 to 52 volts
• Power Consumption: 260 max. (10A @ 24V DC)
• Actual Light Output: 25,000 lumen
• Operating Temperature: -40°C to +50°C
• LED Colour Temperature: 5700 K
• Degree of Protection: IP 6K7 (Protection against dust and temporary water immersion)
• Degree of Protection: IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)
• Degree of Protection: Reverse polarity, transient spike and over voltage protection and advanced thermal management
• Cable Length: Supplied with 1.8m of easy plug-in sheathed cable

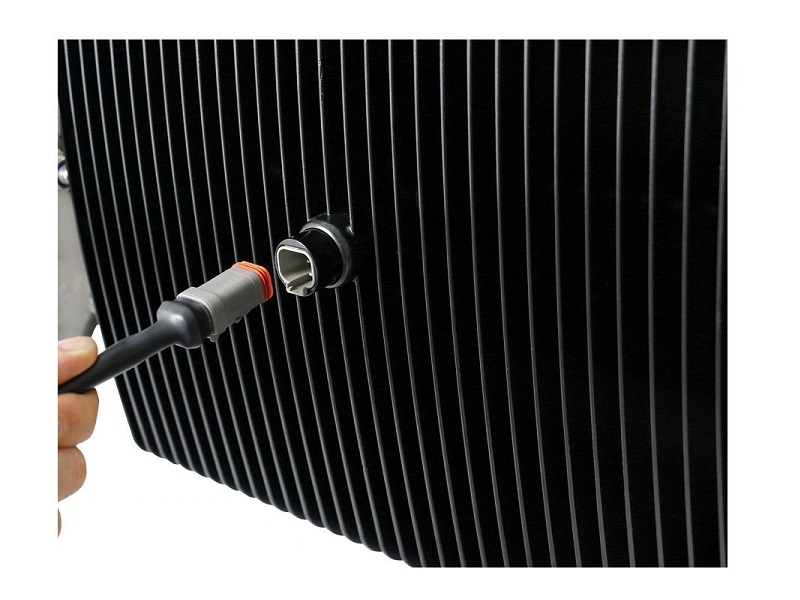

• Connection: 4 Pin Deutsch plug
• Lens Material: High impact and chemical resistant Grilamid lens
• Approvals: CE, RCM, FCC, ISO 13766, ECE R10
