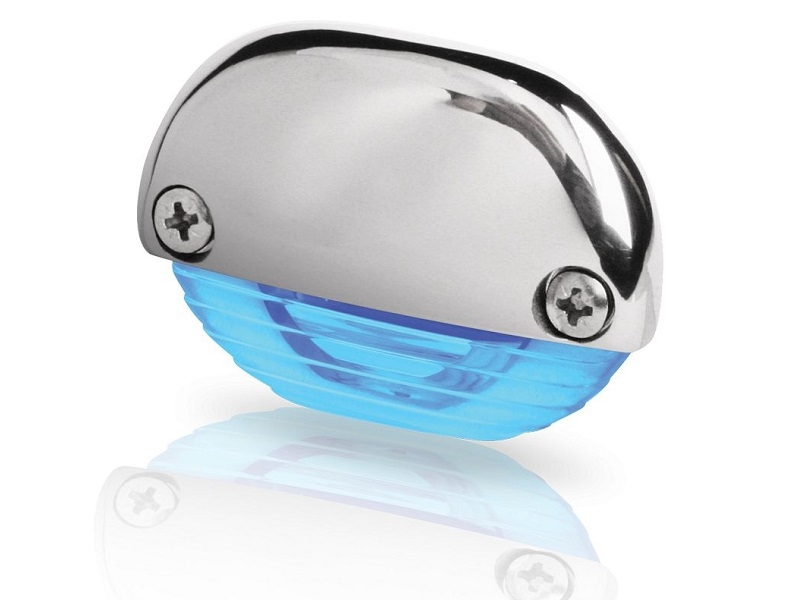

Blue LED Easy Fit Step Lamp – courtesy STEP Blue Led Lamp with Stainless Steel Cap

Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications.

Stylish LED step lamps provide safe, reliable and energy efficient lighting and are ideal for illuminating on board areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs and switches. Completely sealed and ultra-durable, Hella marine LED lamps may be installed on a vessel’s interior or exterior, wet or dry. Lamps are also shock and vibration resistant and represent reliable ‘fit and forget’ technology.

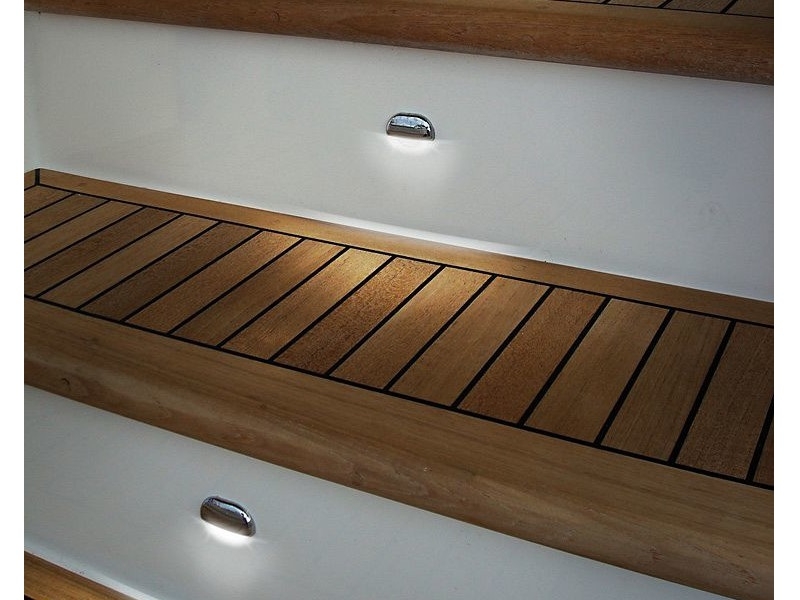

Light is radiated downward at an angle of 30° making these lamps ideal for illuminating on board areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs and switches without shining into the eyes.

Multivolt electronics ensure constant light output in 12V or 24V DC systems. Easy Fit Gen 2 series lamps are completely sealed, shock and vibration resistant and represent reliable ‘fit and forget’ technology.

Features

• Completely sealed IP67
• UV, corrosion and impact resistant
• Ultra low power consumption
• Pre-wired with marine cable
• Made in New Zealand
• 5-year warranty

SPECIFICATIONS

• Lens Material: UV resistant enhanced impact acrylic
• Cap Material: polished 316 stainless steel
• Cable: Pre-wired with 100mm marine cable
• Voltage: Multivolt for optimum brightness in 12- and 24-volt systems
• Power Consumption: 0.5W (< 0.04A@12V / < 0.02A@24V)
• Degree of Protection: IP67 - Completely Sealed
• Weight: 30g (Including cable)
• Approvals: CE, RCM
