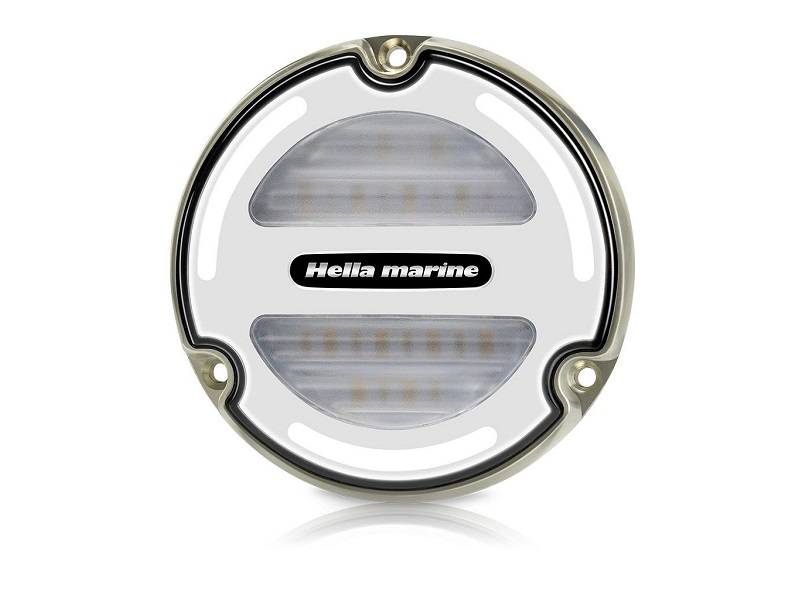

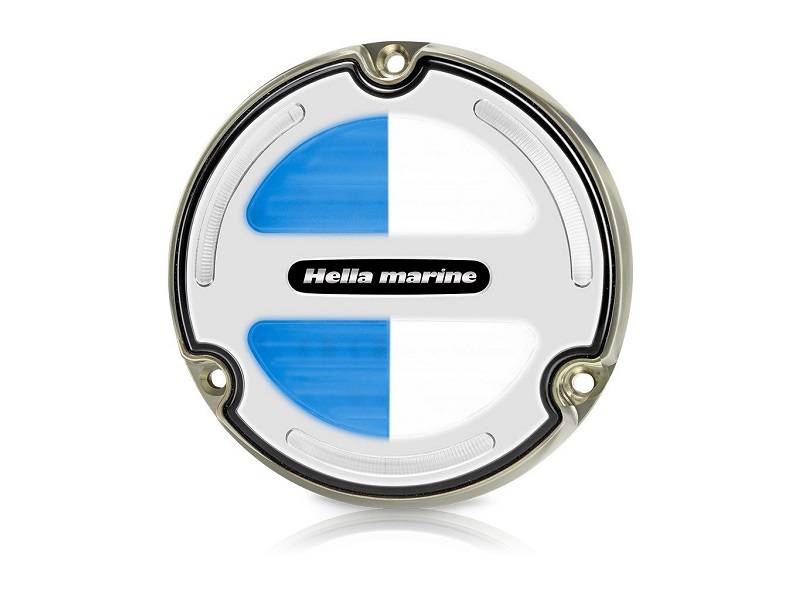

Apelo A3 Bronze White/Blue Underwater LED Light

Supercharged with 6000 lumen light output, the Apelo A3 is the ultimate in the Hella marine Apelo Underwater Light range.

The A3 model has an improved formula with double the light output, maximizing the vibrant blue or intense white. This version sport the Edge Lighting Apelo is known for.

Optical intelligence is at the heart of Hella marine lighting, and Apelo is no exception. Intelligent optics spread light across the water without losing light to the depths, projecting wide across the transom. With the addition of Nickel-silver to the extremely corrosion resistant housing, the Apelo A3 is perfect for permanently submerged installations on larger boats and ships.

Suitable for fiberglass, timber, steel, and composite hulls.
Only mount on aluminum hulled vessels with a suitable isolation spacer.

Made in New Zealand and backed by Hella marine’s 5 year warranty, Apelo Underwater Lights are built to last.

SPECIFICATIONS

• Mounting: Transom / Surface
• Voltage: Multivolt™ 12 / 24V DC Nominal
• Max. Power Consumption: Blue / White 70W / 5.9A @ 12V, 2.9A @ 24V
• Edge Light: <5W / 0.37A @12V, 0.2A @ 24V
• Max. Light Output: 6000 lumens (White)
• Colour Temperature: 5000K (White)
• Beam: 90° x 24°
• Protection: Spike protected to +500 volts; Reverse polarity protected to -700 volts.
• IP68 / IP69: Suitable for submersion in operation and high-pressure water jet cleaning.
• Cable Length: 2.5m / 8.2ft, tinned marine cable
• Lens Material: Grilamid® (Premium grade, UV stable, impact resistant Nylon)
• Base Material: Marine grade bronze
• Compliance: CE, UKCA, EN55015 / CISPR 15, IEC60533, IEC61547, ICES-005, RCM
