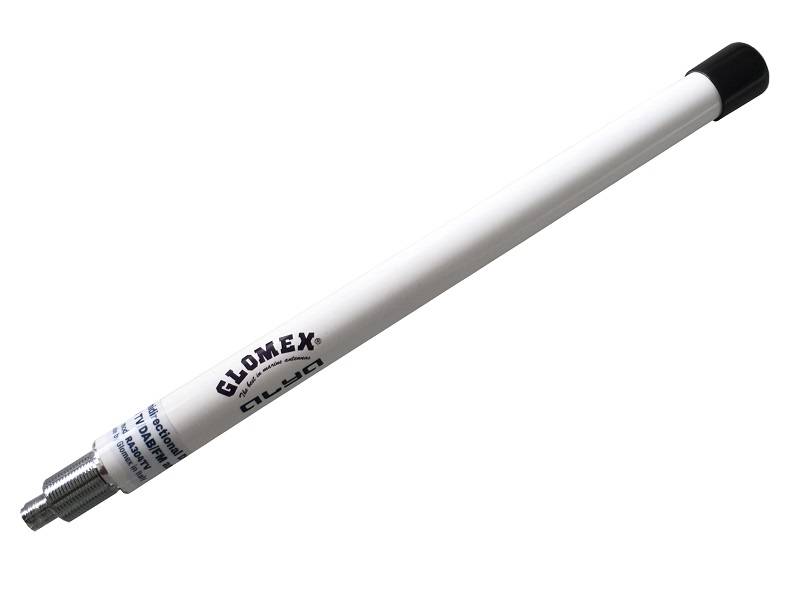

Alya – 25 cm marine DVB-T2 TV/DAB/FM Antenna w/ Inner Amplifier – white version

Alya is an extremely compact (only 25cm high) whip terrestrial TV antenna with internal amplifier. Through the supplied power inserter, it is possible to connect the antenna to a TV and to the DAB or FM radio. Alya is supplied with the new F / F fast fitting connector to prevent the cable from twisting, for a super-fast and extremely easy installation. Alya can be installed on any kind of boat, whether sailboat or motorboat, and can be matched to the VHF RA304, AIS RA304AIS, and cellular/internet RA304W antennas.

Supplied accessories:

• 2-way power inserter TV – AM/FM
• 5m (16′) coaxial cable to connect the antenna with the inserter
• 1,5 m (5′) coaxial cable to connect the inserter to the TV / Decoder
• F/F fast fitting connector

SPECIFICATIONS:

• Antenna diameter: 20 mm (0.8”)
• Antenna height: 250 mm (10”)
• Base diameter: 5/8″X14 mm
• Antenna weight: 150 g (5 oz)
• Radome material: U.V. resistant ASA
• Color: White
• Angle of reception: 360°
• Polarization: Horizontal / Vertical
• Impedance: 75 ohms
• Frequency range: 175/240 MHz 470/860 MHz
• Gain average: 24,5 dB
• Noise factor: 1,7 dB
• Power consumption: 20 mA
• TV set max: 1
• Termination: F female
• Connector supplied: F/F Fast fitting connector
