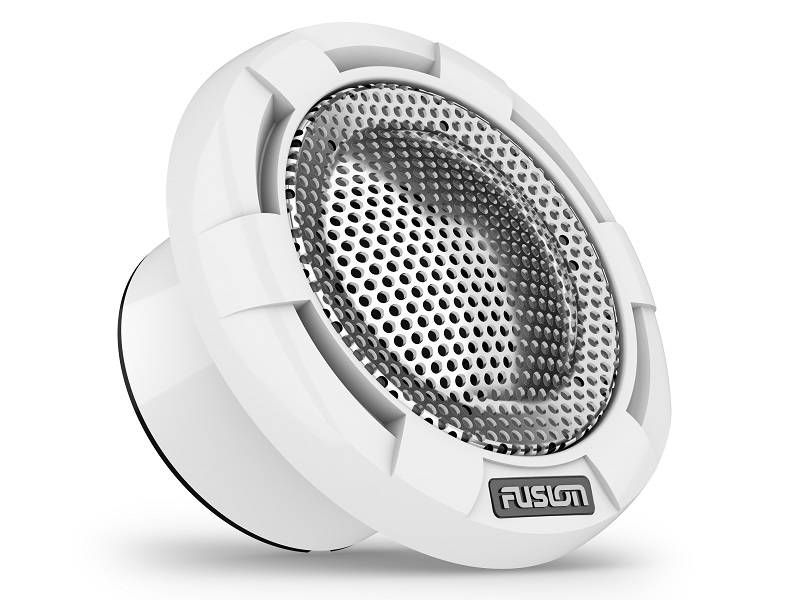

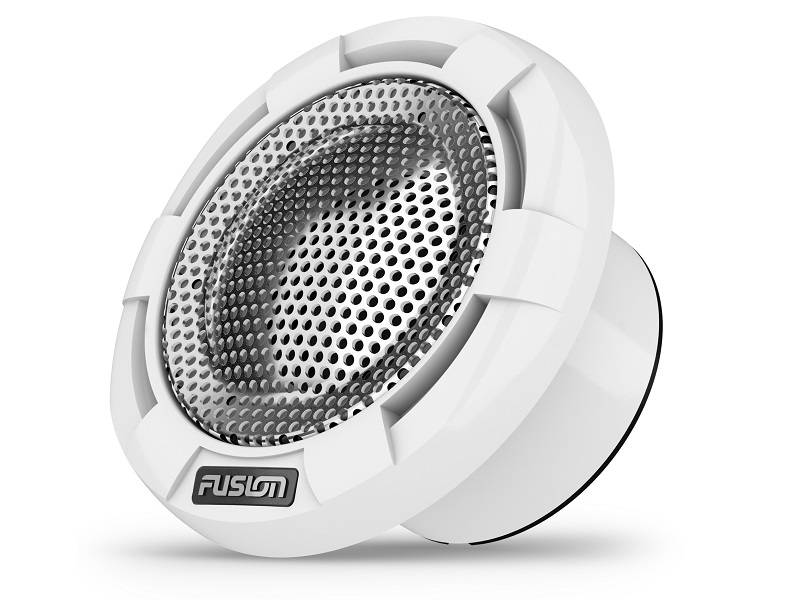

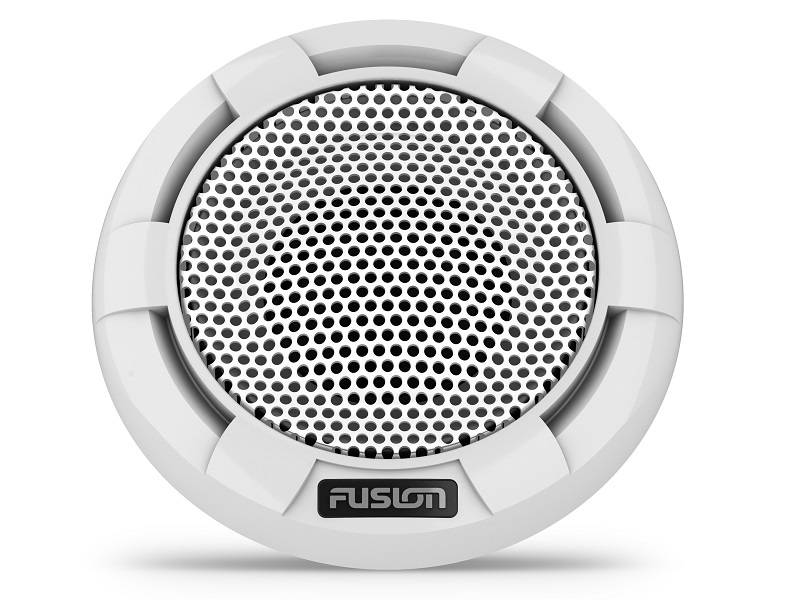

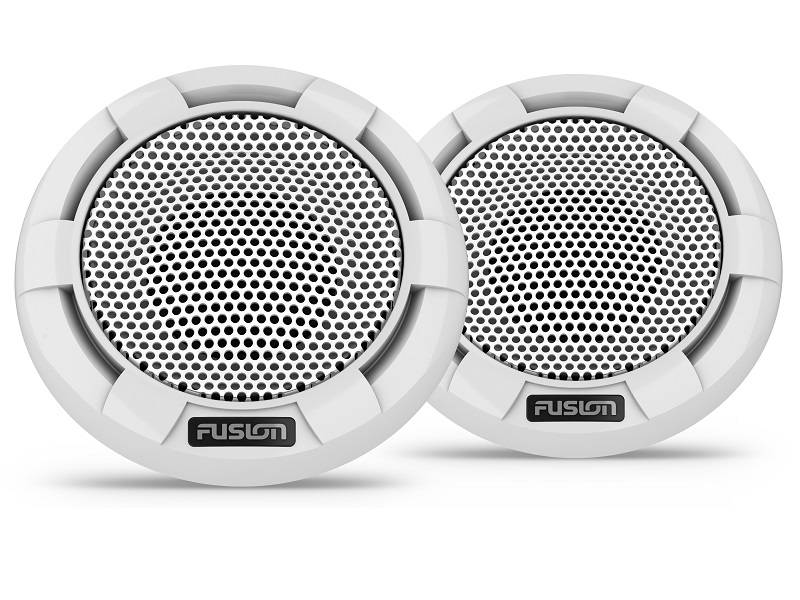

SG-TW101SPW – 330W, 1” Component Tweeters White

Enhance your listening experience while you’re on the move with these marinised component tweeters. Designed to be dash mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind and wave noise.

Key features include a compact form factor, low profile mounting design, IP65 weather rating and Fusion True-Marine™ design with a 3-year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.

SPECIFICATIONS

General

• Physical dimensions (diameter x depth): 2.91″ x 1.64″ (74 x 41.6 mm)
• Water and dust rating: IP65
• Tweeter size: 1″
• Peak power (watt): 330 W
• RMS power (watt): 60 W
• Sensitivity (1 W / 1 m): 91 dB
• Frequency response 3 kHz - 20 kHz
• Nominal impedance 4 ohms
• Recommended amplifier power (RMS) 25 - 140 W/Ch
• Operating temperature range 32° to 122° F (0° to 50° C)
• Voice coil diameter 1″
• Material: Aluminum dome

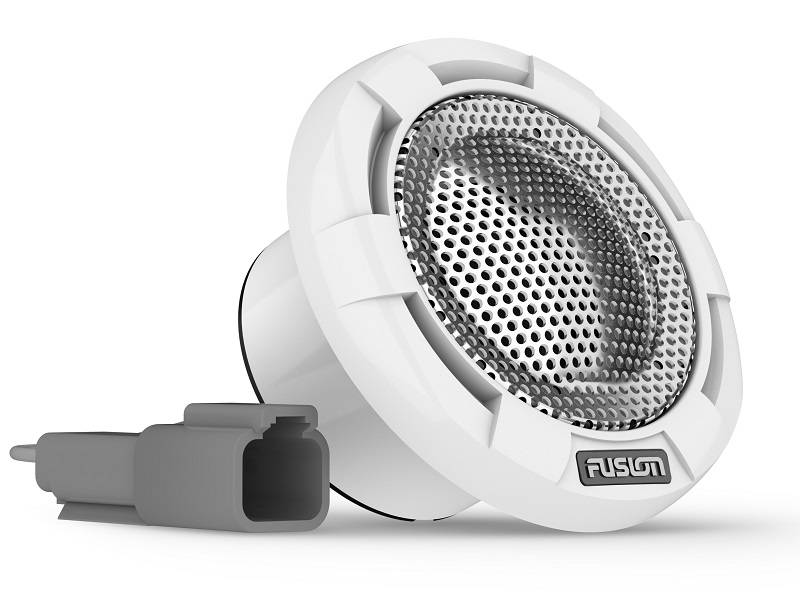

• Tweeter connection: Flying lead with water-resistant 2-way connector, 5.9″ (150 mm)
• Compass-safe distance: 43.3″ (110 cm)
• Warranty: 3 years

Mounting Dimensions

• Mounting diameter clearance: 2.01″
  Mounting depth clearance: 1.22″
