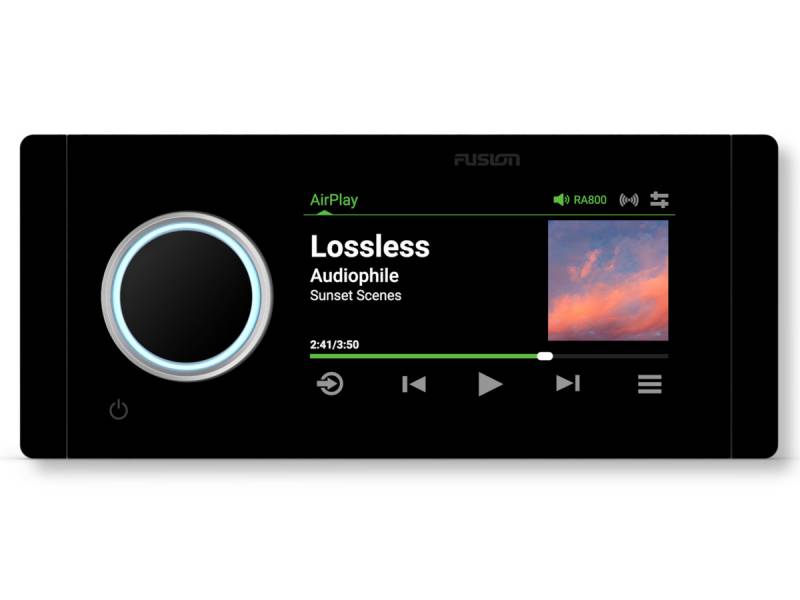

Fusion Apollo™ MS-RA800 Marine Stereo

OUR MOST ADVANCED MARINE STEREO EVER

It’s the most powerful and technologically advanced Fusion® marine stereo ever. With audiophile-level components and a built-in amplifier providing twice the power of the predecessor RA770, this system delivers lossless audio performance of unmatched clarity. Plus, its Wi-Fi® connectivity supports seamless AirPlay® audio streaming on your boat.

HIGH-RESOLUTION AUDIO

Our first marine stereo to support high-resolution lossless audio, RA800 offers unparalleled sound quality — supported by Wi-Fi technology for seamless audio streaming.

UPGRADED INTERNAL AMP

The built-in Class-D amplifier can deliver 4 x 40 watts RMS (all channels driven) with less than 0.1% total harmonic distortion at 4 ohms — producing more than 50% more power output1 than its predecessor.

HIGHER-RESOLUTION DISPLAY

The stereo’s 4.3″ LCD touchscreen display offers notable improvements1 in image resolution, colour saturation, viewing angles and readability in bright daylight.

STEREO NETWORKING

Connect your RA800 stereo with other Apollo Series stereos to create a network on board your boat. Enjoy advanced features, including stereo grouping, combined volume control, power options and Home Zone control.

MULTIPLE SOURCE OPTIONS

Take advantage of a wide variety of source options available, including AirPlay streaming from Apple®, BLUETOOTH® connectivity, HDMI ARC, DAB+ radio tuner, USB connections, AM/FM radio and AUX inputs.

MFD NETWORKING

Easily network your RA800 stereo with a compatible Garmin MFD via NMEA 2000® or Garmin BlueNet™ network for integrated audio control at the helm.

SPECIFICATIONS

GENERAL

• Physical dimensions (HxWxD): 82 x 192 x 119.4
• Weight: 620 g (1.37 lbs)
• Control Surface Dust/Water Rating (when properly installed): IPX6 and IPX7
• Rear Dust/Water Rating (when properly installed): IPX3
• Operating temperature range: -20 to 70° C
• Current draw (max): 25 A at 14.4 V; 15A at 28.8 V
• Multi-language interface: Bulgarian, Simplified chinese, Traditional chinese, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish

AUDIO

• Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD): 40 W x 4
• Electrical features

POWER

• Input: 10.8 to 32 Vdc
• Compass safe distance: 150 mm (5.9)

STEREO FEATURES

• Display size: 109 mm (4.3")
• Display type: Capacitive touchscreen colour LCD
• Display resolution: 800 x 480
• Optically bonded display
• Built-in amplifier: Class D (4 Ω)
• Built-in Wi-Fi®
• Built-in Digital Signal Processing (DSP): Yes (with custom DSP profile setup using Garmin Audio app)
• Stereo networking: Yes (wired or wireless)
• Garmin audio control: Yes (MFD, smart device and Garmin watch)
• Multi-Zone™️ technology: 4 zones
• Bluetooth® wireless technology: Yes (Bluetooth® 5.3)
• ANT® wireless technology
• DAB+ ready
• Software updates: Over-the-air updates via Garmin Audio app/USB

SOURCES

• Supported sources: AM, FM, BLUETOOTH®, Apple AirPlay® 2,HDMI ARC,USB audio,iPhone,iPod,AUX x2, DAB+ Source (upfront AM/FM)
• Supported audio formats (USB): MP3, AAC, M4A, FLAC, WAV

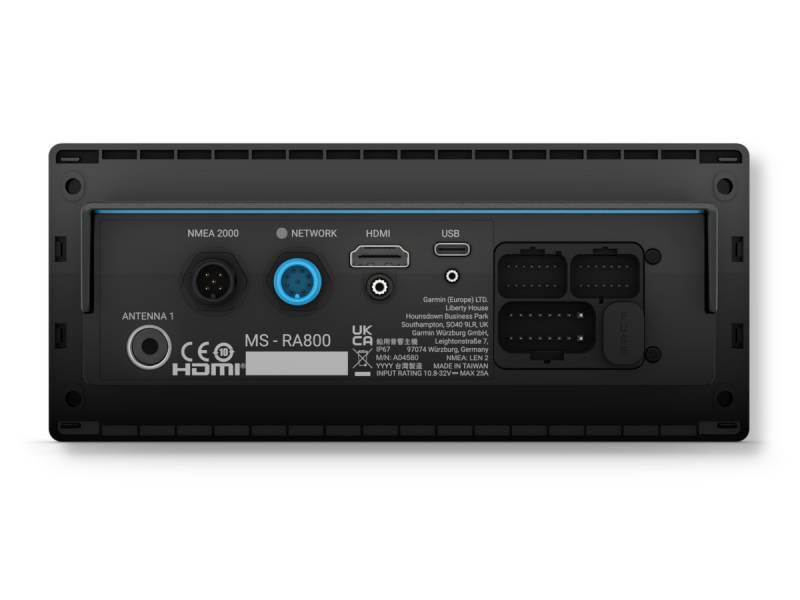

• Networking & Connections
• Auxiliary inputs (RCA): 2
• HDMI ARC Ports: 1
• Ethernet ports: 1
• NMEA 2000® ports: 1
• NMEA 2000® LEN: 2 (65 mA)
• USB ports: 1 (USB-C)
• AM/FM ports (Motorola antenna connector): 2 (1x Motorola (female), 1x FAKRA Z (male)
• DAB+ ports (FAKRA connector): 1
• DAB+ port (Motorola antenna connector): 1 (shared with AM/FM)
• Speaker connections: 4 (2 zone amplified)
• RCA pre-out (left, right and subwoofer - requires external amplification): 4 zones
• Line out (requires external amplification): 4 (L + R per zone)
• Subwoofer out (requires external amplification): 4 (1 mono output per zone)
• Wireless frequencies/protocols WiFi 2.4Ghz: +12dBm nominal MIMO 2 x 2
• Bluetooth®: 2.4 GHz @ +10 dBm nominal
• ANT®: 2.4GHz 0dBm nominal
• ANT® wireless range: Up to 10 ft (3 metres)
• Bluetooth® wireless range: Up to 30 ft (10 metres)
