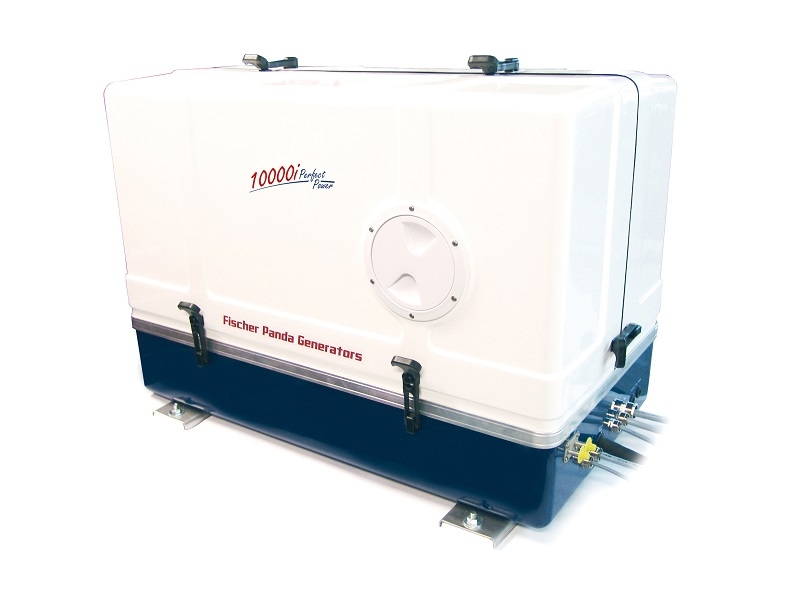

Panda 10000i PVMV-N - 8kW Variable Speed Generator for Vehicles

The Panda 10000i PVMV-N vehicle generator comes with a sound insulation capsule (GFK), an integrated water-cooled vertically mounted pre-silencer and a main silencer.

FEATURES

• Requires external radiator
• Suitable for internal installation
• Best choice, when space and length available
• Complete water-cooled silencer inside capsule
• Digital display
• Environmentally friendly - low fuel consumption
• Variable speed - load-dependent
• Easy to install - reduces costs
• Small size and low weight - compact installation
• High starting capacity for air conditioners / diving compressors
• Highly efficient - maximum energy
• Pure sinus wave is ideal for sensitive electronics

The Panda iSeries generators have been especially designed to be compact, quiet and powerful - with up to 30% weight and space savings!

They are characterised by their modern, innovative and environmentally friendly inverter technology. A parallel connection without additional cables is possible using special inverters.

The speed of the diesel engine is adjusted according to the user’s changing power requirements while the output voltage always remains constant from the inverter. Variable speed control considerably reduces exhaust emissions and fuel consumption in comparison with a traditional generator with a fixed speed. The maximum speed of the engine is 2800 rpm. The electric load is provided with a constant output voltage of 230 V / 50 Hz or 400 V / 50 Hz via an inverter.

Fischer Panda for mobile and stationary applications

Designed for use in special and diverse areas of the vehicle industry, Fischer Panda generators are installed in the smallest and tightest places available and can be found in numerous mobile applications worldwide.

Touring
• Luxury motor coaches • Limousine coaches • Holiday homes

Emergency services
• Command centres • Border control & customs • Mobile blood donor units

Promotion
• Mobile stages • Trade show vehicles • Formula 1 team vehicles

Specialist services
• Environmental monitoring • Railway & track maintenance • Tactical shelters

Communications
• Mobile broadcasting • Relay and transmitter sites • Commercial vehicles

Recreational
• Motorized RVs • Expedition vehicles • Off-grid and remote sites

Super-Silent Sound Insulation System

The most significant advantage of all Fischer Panda generators is the low sound level. Many parts are required to work together to achieve this result. A flow of cooling air is not required inside the capsule, this also helps maintain constant ambient temperatures.

An efficient water-cooling system requires the radiator to be installed separately from the generator. Fischer Panda generators up to 25 kW are housed in a fibreglass (GFK) sound insulation capsule.

SPECIFICATIONS

• Nominal Performance: 8kW | 10kVA
• Engine speed (rpm): 2200-2800
• Voltage tolerance: ± 3%
• Control: iControl
• Capsule type: GFK
• Sound insulation: 4DS
• Engine manufacturer Kubota
• Engine type: Z602
• Engine displacement (cm3): 599
• Number of cylinders: 2
• Sound level 7m / 3m / 1m dbA: 52 / 62 / 67
• Approx. capsule dimensions excl. fittings (L x W x H ): 760 x 515 x 609 mm
• Approx. weight incl. capsule: 195 kg
