FLS 3D - 3D Forward Looking Sonar

This latest development of the well proven patented Echopilot Forward Looking Sonar, displays a 3 dimensional representation of the underwater scene ahead of the boat. The seabed terrain and potential hazards are shown, for the first time, with unparalleled realism. This is a real time sonar image of what is actually ahead of the boat, not a chart rendered into 3D.

Twin retractable transducers ensure complete forward coverage whatever the hull form. The view ahead is 60 degrees in the horizontal plane, over 90 degrees in the vertical plane and the forward range is up to 200 m. The screen updates every 1  second depending on the range setting. The black-box FLS-3D outputs HDMI and VGA for a full color picture on a wide range of compatible displays.

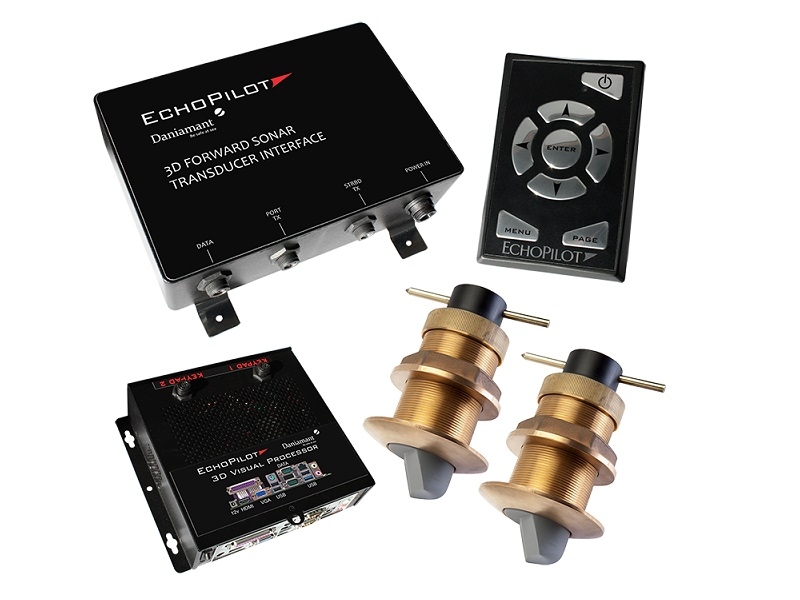

A basic EchoPilot 3D is supplied with two 5” transducers with bronze housings. Optional housing lengths and materials available for metal or very thick hulls.

2-meter transducer cable, 10 meter extension cable and 10 meter data cable (from Transducer Interface box to Visual Processor).

SPECIFICATION

• Voltage: 12v or 24v DC
• Current Consumption: N/A
• Operating frequency: 200 kHz
• LCD type: N/A
• Viewing Area: 3rd part dependent
• Forward Range: 20 to 200 metres
• Maximum Depth Range: 10 to 100 metres
• Display Update Rates: 1-2 updates / sec
• Built-in Test Facility: Yes
• Repeater Option: Yes
• Alarm: Shallow
• Transducers: FLS 3D Starboard and Port
