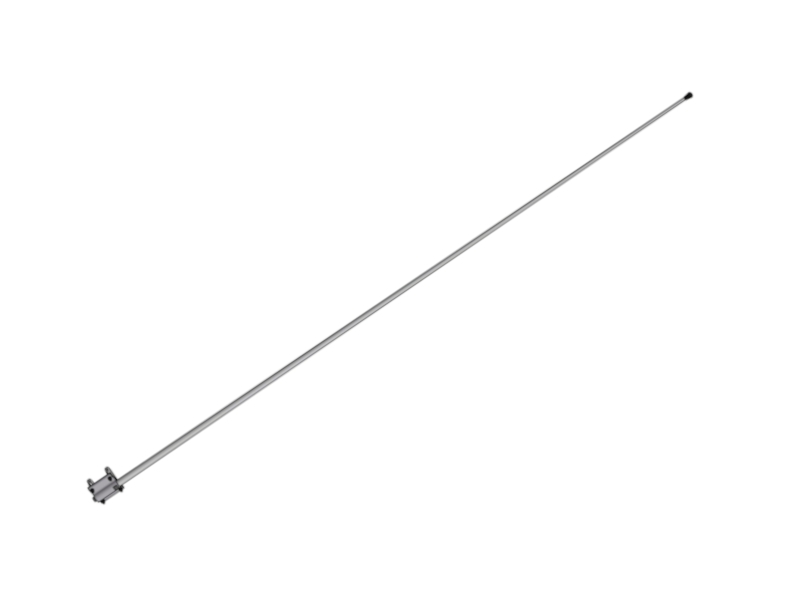

AV62M9 8 ft, 2.4 m - VHF Marine Antenna

The AV62M9 is a rugged high gain antenna designed for the maritime VHF radio telephone service. It is a high-quality antenna with a durable construction and a beautiful finish for installation on all kind of vessels.

SPECIFICATIONS

• Frequency range: 156-159MHz, VSWR<1.5 :1 | 153-162MHz, VSWR<2 :1
• Nominal impedance: 50 Ohm
• Power rating:  100W
• Gain: 4 dBi
• Pattern: Horizontal plane - Omnidirectional
• Polarization: Vertical
• Connector: UHF female.
• DC-grounded: Yes
• Design: Collinear dipole brass elements. Radiating element completely enclosed in polyurethane foam within a fiberglass tube. Aluminum base.
• Height: 2.4m
• Weight: 2.5 kg
• Wind rating: 55m/s=125mph
• Finish: Polyurethane lacquer, white
• Temperature range -55 °C +71 °C | -67 °F +160°F
