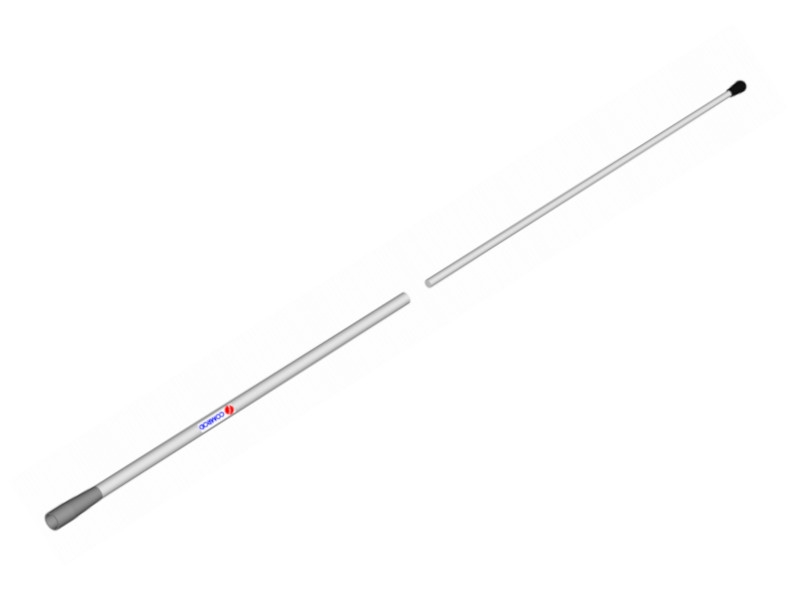

AV60-BI, 2.45 m (8 ft) VHF Antenna

The AV60BI is a high-quality gain antenna designed for the maritime VHF radio telephone service.

It is a high-quality antenna with a durable construction and a beautiful finish for installation on all kinds of vessels.

SPECIFICATIONS

• Frequency range: 156-159MHz, VSWR<1.5 :1 | 159-162MHz, VSWR<2.5 :1
• Nominal impedance: 50 Ohm
• Power rating:  100W
• Gain 6 dB
• Pattern Horizontal plane: Omnidirectional
• Polarization: Vertical
• Connector: BNC female.
• DC-grounded: Yes
• Design: Collinear5/8λ wave phased brass elements. Radiating element completely enclosed in polyurethane foam within a fiberglass tube.
• Height: 8’(2,45m.)
• Weight: 1.1 kg
• Wind rating: 55m/s=125mph
• Finish: Polyurethane lacquer, white
• Temperature range -55 °C +71 °C | -67 °F +160°F
