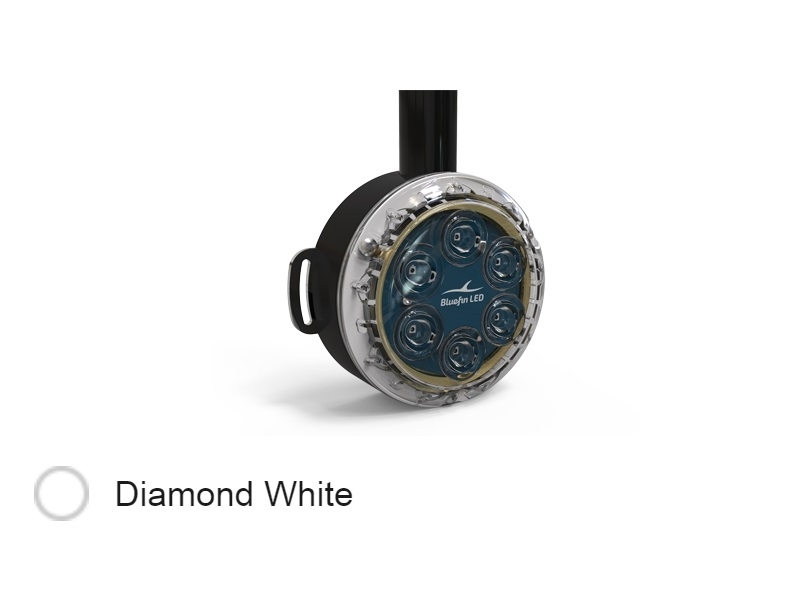

Piranha DL6D Dock Light – 24V, 3600 lumen, LED Dock Light Diamond White

Overview

• Surface Mounted underwater Dock Light
• The Piranha DL6D is the latest edition to the Dock Light family, constructed from durable impact resistant polymer its innovative and compact design makes it the ideal choice for breathtaking illumination & safety on marinas, docks and water features.
• Multiple mounting options ensures a very simple installation.
• Reverse polarity protection within built driver technology and active thermal rollback, soft start up, active supply voltage monitoring, Guard X protective coating prevents marine growth accumulation.
• Light supplied with puck, clamp, 1-meter UPVC pre threaded pipe and IP68 gland.

SPECIFICATION

• Suitable for mounting on Docks, Marinas, Pontoons and water features
• Fixture Lumens 3600
• Color: Diamond White
• Typical LED life expectancy 50,000 + hours
• Voltage 24V, Power Draw 1.8 Amps
• Over voltage, current, reverse polarity, active thermal rollback, soft start up, active supply voltage monitoring.
• Lens: optical grade high impact polymer, 60-degree beam angle
• Factory fitted 7mtr power lead
• 2 years warranty
