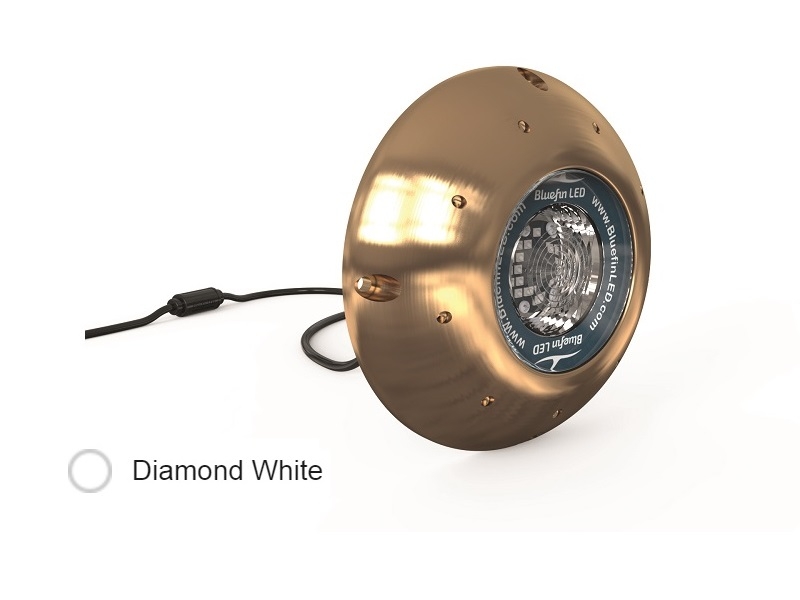

Orca O20 SM White - 24V White 13.000 Lumen Underwater LED Light

OVERVIEW

• Surface mounted.
• The most powerful surface mounted Underwater LED lights available.
• 2 models to choose from, Single color or RGBW Color Change model with WIFI DMX functionality
• A radical departure from conventional sealing methods the Orca has a unique rear cassette design with multiple sealing systems
• Machined from Billet AB2 Marine grade Bronze.
• Suitable for Transom mounting on all hull types.
• Built in driver technology with active thermal rollback.
• RINA Type approval

SPECIFICATION

• Suitable transom or side hull mounting
• Surface mount, requires 25mm/1" cable entry hole
• Recommended for boats up to 30m+/105+ft
• Max Lamp Lumens 16000 / Fixture Lumens 13000
• Typical LED life expectancy 50,000 + hours
• Voltage 24v, Power Draw 5.1A
• For Mains Voltage systems purchase our 110/240V PSU
• Over voltage, current, reverse polarity, active thermal protection
• Hydro Block and Nano Coating Technology
• Fixture profile 32mm,1.26"
• Fixture diameter 140mm,5.5"
• Lens: optical grade 8mm Borosilicate glass, 65-degree beam angle
• Body AB2 Bronze throughout
• Weight 2.3kg/5.06lbs
• 2 years warranty
• Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminum hulls
