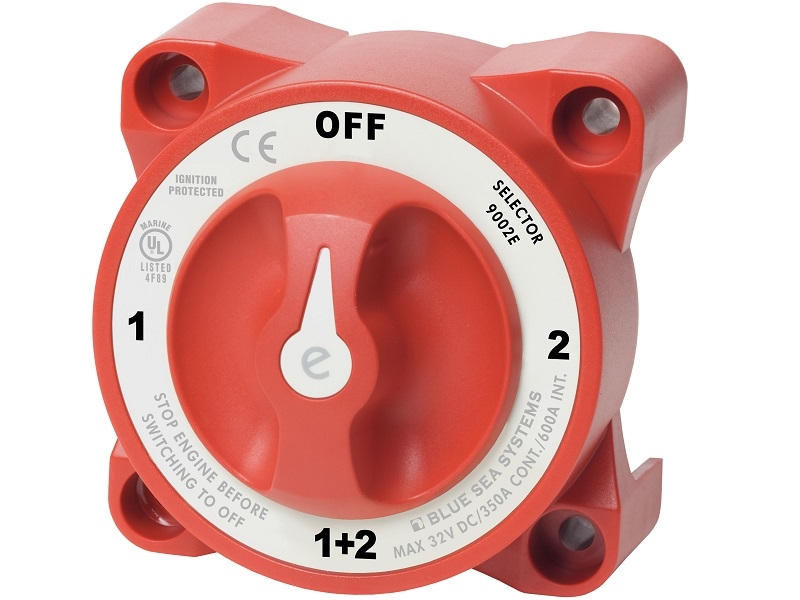

9002e - e-Series Selector Battery Switch with AFD

Blue Sea Systems e-Series switches can be installed in a number of locations. Its compact dimensions and two mounting options make it very simple to install. They have ignition protection and can be installed in the engine room of fuel-fueled vessels.

This version has disconnect terminal from the alternator field to protect the alternator diodes from damage caused in the event of accidental passing to the OFF position while the engine is running.

FEATURES

• Compact design makes installation in tight, simple locations
• Ignition protection allows installation in the engine room of fuel-fired vessels

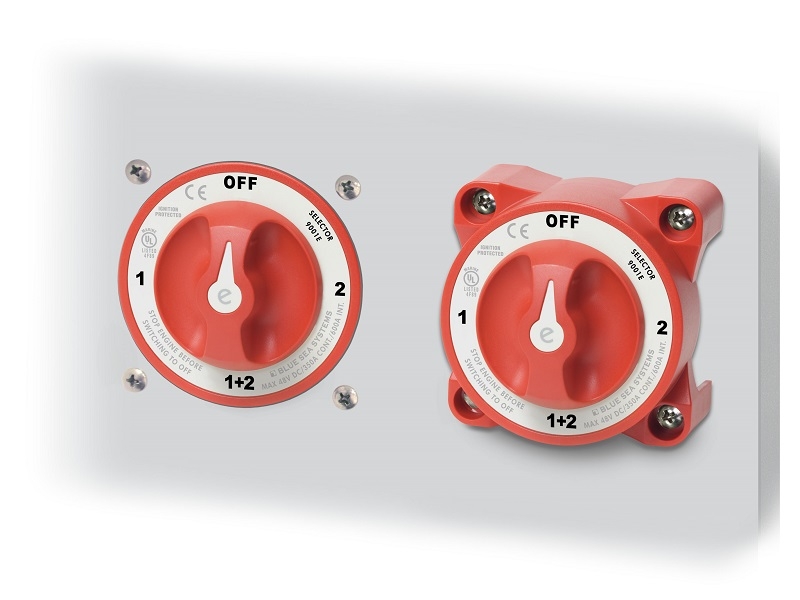

• Multiple installation options

Key Features:

• Positions: 1-2-1 & 2, OFF
• Combination of batteries: YES
• Alternator Field Disconnect: YES
• Maximum voltage: 32V
• Continuous current: 350A
• Flashing current (duration): 600A (5 min.)
• Cranking Rating: 1200A
• Battery Inputs: 2
• Installation holes: 1/4 "
• Stud Stud Dimension: 3/8 "
• Weight: 0.59 kg

To download the files simply click on the desired files to select and then click the Download button at the bottom .
