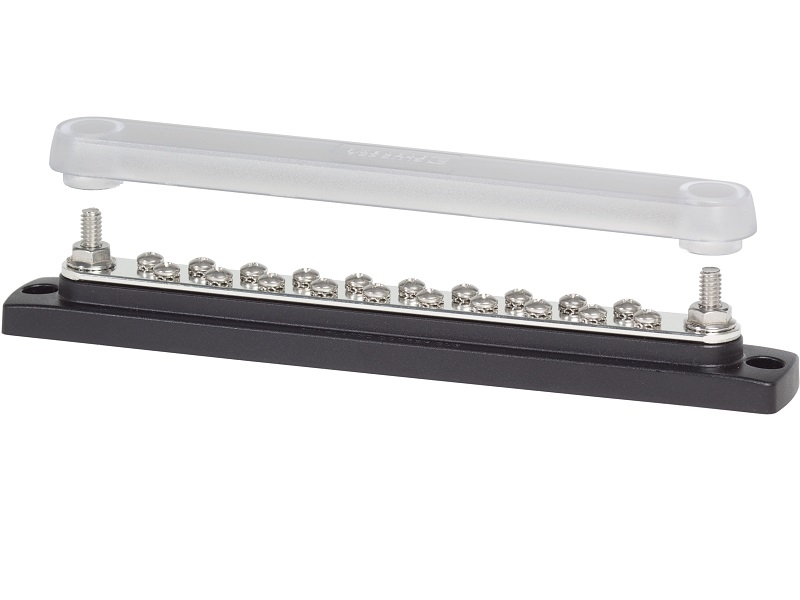

2312 - 150A BusBar - 20 Gang with Cover

Get your AC or DC wires shipshape with a 2 stud, 20 screw terminal bus bar.

This Blue Sea Systems bus bar is the industry standard and is a great way to organize and distribute power. Either behind the breaker panel or in the engine room, a bus bar can turn a spaghetti bowl of wire into something more organized and easier to troubleshoot.

Use them to distribute the power from a single breaker to several loads; examples being navigation lights or cabin light circuits. They also provide a way to connect and disconnect wires as is required to disassemble a larger boat for transportation. Sized to match the current loads, make sure that the bus bar you choose will handle the required amperage, plus some room for expansion.

Key Features

• Great for collection of negative or AC ground circuits
• Ideal for positive distribution
• Two 1/4"-20 Stainless steel studs allow high torque loads to reduce resistance in the connections feeding the bar
• Twenty #8-32 terminal screws on a tin-plated copper bus bar secure, organize ring and maximize electrical contact
• Included press-on insulation cover available allows the terminals to be attached to the bus bar from any direction and is ideal for applications required to have insulation protection by the ABYC
• Reinforced heat-resistant polycarbonate
• Lifetime warranty

Specifications

• Maximum Voltage AC: 300V
• Maximum Voltage DC: 48V
• Continuous Rating AC: 130A
• Continuous Rating DC: 150A
• of terminals: 20 #8-32 screws
• of terminal studs: Two 1/4-20 studs
• Base material: Reinforced Polycarbonate
• Bus material: Tin-plated copper CDA 110/UNS 1000
• Dimensions: 9 1/4”L x 1 1/4" W x 1 3/8” H
