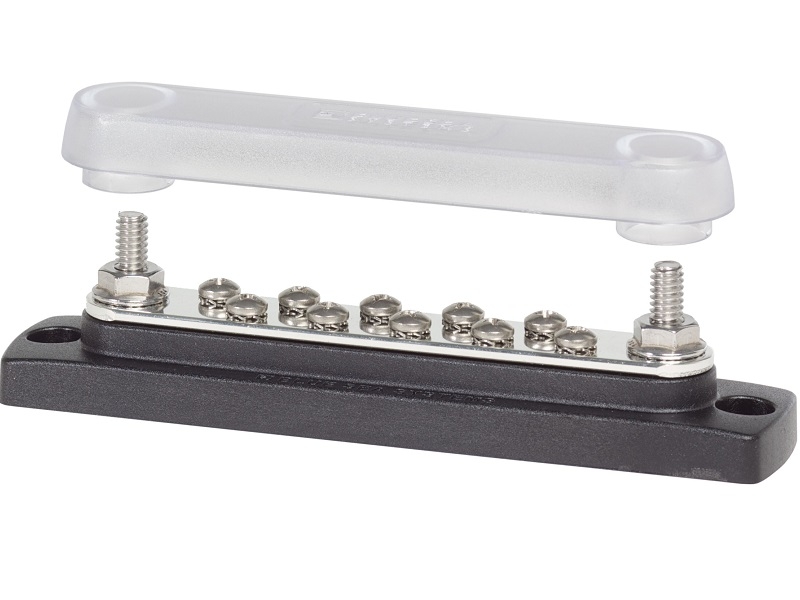

2300 - 150A BusBar, 10 Gang with Cover

Get your AC or DC wires shipshape with a 2 stud, 10 screw terminal bus bar.

This Blue Sea Systems bus bar is the industry standard and is a great way to organize and distribute power. Either behind the breaker panel or in the engine room, a bus bar can turn a spaghetti bowl of wire into something more organized and easier to troubleshoot. Use them to distribute the power from a single breaker to several loads; examples being navigation lights or cabin light circuits.

They also provide a way to connected and disconnect wires as is required to un-step a mast. Sized to match the current loads, make sure that the bus bar you choose will handle the required amperage, plus some room for expansion.

Key Features

• Great for collection of negative or AC ground circuits
• Great for positive distribution
• Two ¼"-20 Stainless steel studs allow high torque loads to reduce resistance in the connections feeding the bar
• Ten #8-32 terminal screws on a tin-plated copper bus bar secure, organize ring and maximize electrical contact
• Included press-on insulation cover available allows the terminals to be attached to the bus bar from any direction and is ideal for applications required to have insulation protection by the ABYC
• Reinforced heat-resistant polycarbonate
• Lifetime warranty

Specifications

• Maximum Voltage AC: 300V
• Maximum Voltage DC: 48V
• Continuous Rating AC: 130A
• Continuous Rating DC: 150A
• of terminals: 10 #8-32 screws
• of terminal studs: 2 ¼-20 studs
• Base material: Reinforced Polycarbonate
• Bus material: Tin-plated copper CDA 110/UNS 1000
• Dimensions: 5 5/8”L x 1 ¼” W x 1 3/8” H
• Weight: .37 Lbs
