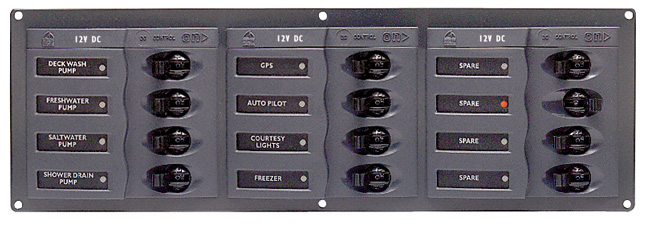

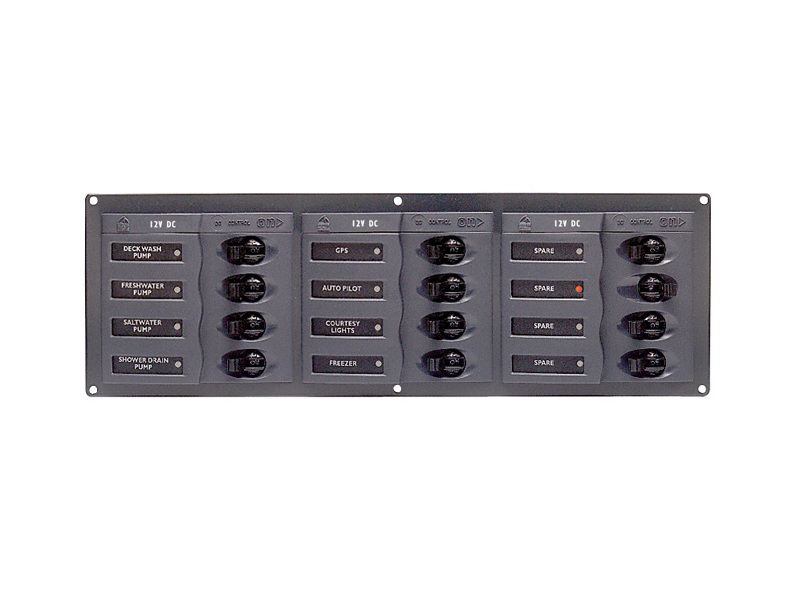

902NMH - DC Panel - 12-Way - No Meter – Horizontal

BEP Marine uses the highest quality materials in its range of Control Panels, from the marine grade aluminum base plates to the Airpax magnetic hydraulic circuit breakers.

FEATURES

• Red systems on LED
• 12V (24V Backlighting Upgrade Kits on page 75)
• Marine grade powder coated aluminum
• ABYC standard voltage indication
• Green LED backlit labels
• Stylish clip on contour fascia
• Label set(s) and buss bar supplied with panels
• Depth for mounting 2.5" (64 mm) all panels

SPECIFICATIONS:

• Total Positions: 12 loads
• Circuit Breakers (single pole): 3x 5A, 4x 10A, 4x 15A, 1x 25A
• Nominal Voltage: 12V
• Maximum Amperage: 100A
• Dimensions: 115 x 351 mm
