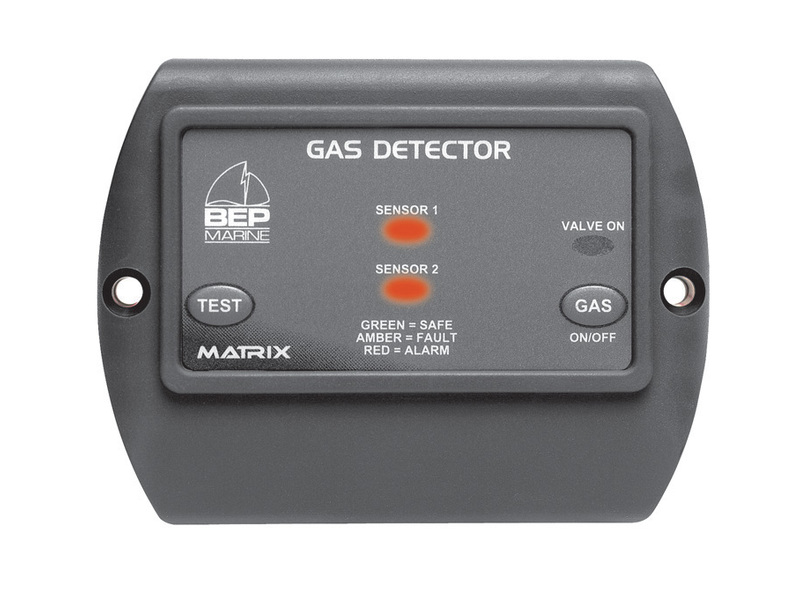

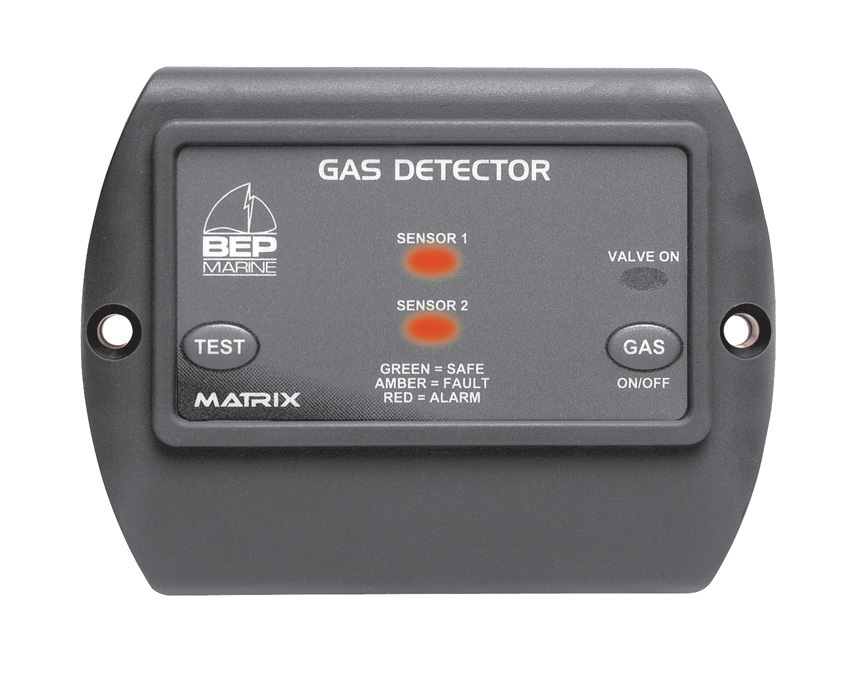

600-GDL Gas Detector with Solenoid Control

The BEP Detectors use microprocessor control to ensure correct sensor sensitivity. The Detectors have the capability to control two sensors which detect both LPG and Petrol, with visual and audible alarms. There is a test switch to check operation of sensors with indicators for fault detection.

The 600-GDL has a "pulse and hold" feature which allows the solinoid valve to to be opened, using full power, and then reducing power to hold the valve in the open position. This reduces power consumption and heat generated whilst the valve is in the on position.

Features

• Dual sensors for LPG and Petrol
• Visual and audible alarms; provision for external alarm
• Automatic shut-off solenoid control with pulse and hold circuit for low power draw (600-GDL only)
• Self-testing
• Provision of bilge blower

SPECIFICATIONS

• Voltage (V DC): 10–32 Current (mA): 350 max.
• Alarm Sensitivity: 20% lower explosive limit
• Current@Out (mA): 800 max.
• Solenoid (mA): 700 pulse, 250 hold
