€ 62,00 (vat incl.)
€ 50,41 (vat not incl.)
Manufacturer: Actisense
Part Number: A2K-TDC-3M
Our Ref.: 115025

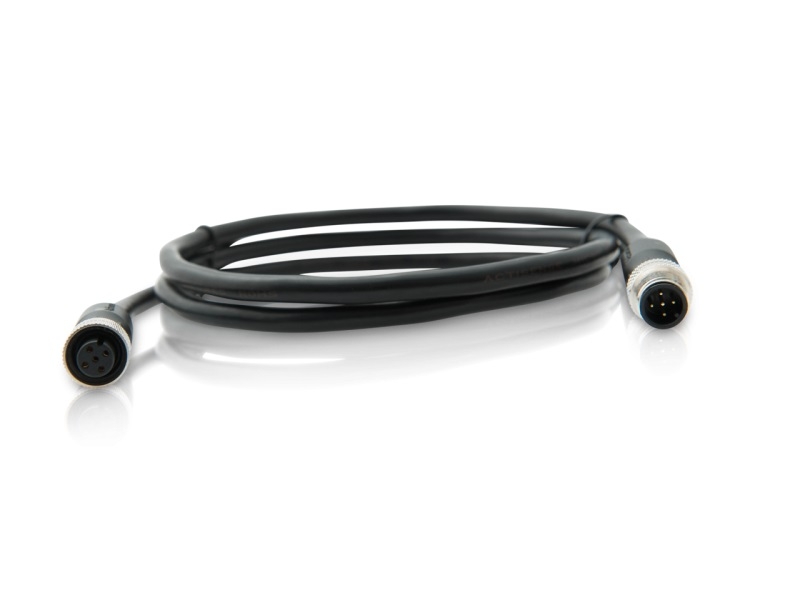

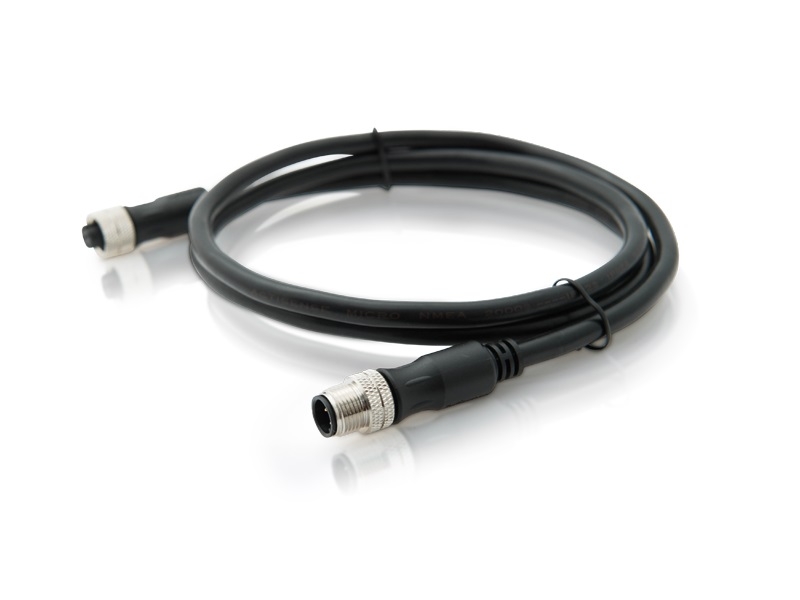

Pre-assembled NMEA 2000 Lite cable saves you time on your installation with ‘plug & play’ installation.
Available in various lengths, the cable assemblies can be used as either drop cable* from an NMEA 2000 backbone or to extend the length of the backbone cable.
Actisense Lite cable assemblies allow quick installation and come with a quality reassurance, as only the Actisense UL certified cable is used.
NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires and a drain wire. The drain wire connects to the cable shield which protects the signal, power and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with NMEA 2000 mini cable to keep the outer Lite sections to the 100-metre maximum.
The maximum permitted length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required as the total of all drop lengths must not exceed 72 meters.
Technical Specification
Electrical
Mechanical
Approvals and Certifications
